1104 | HEYCO
Cable gland, 11 mm, Clamping range 3 to 5.6 mm, black, 1104
Active
Product by HEYCO at Bürklin Elektronik

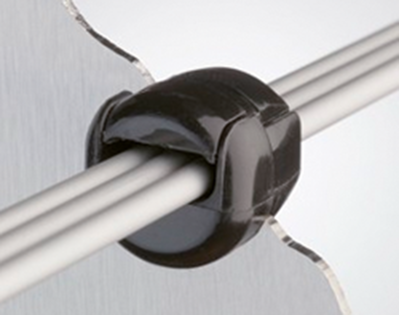

Cord grips with strain relief, type Heyman 1../2.
For flat cables. The snap-in mounting bracket prevents tensile/pressure/torsional stress on the connected flat power cords; Material: PA 6.6, UL 94 V-2, black. Operating temperatures: –35 to +105 °C. Certifications: UL, CSA.

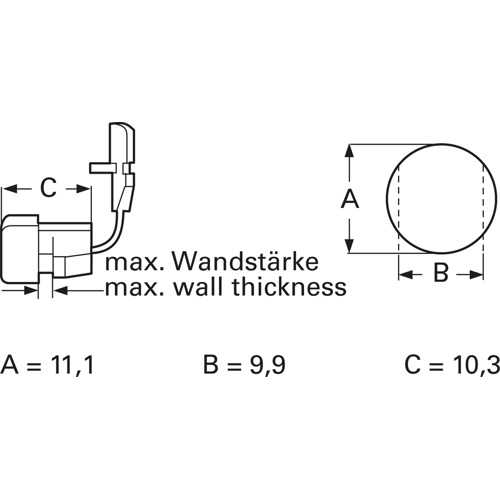

For maximum wall thickness of 2.5 mm, type 2010.
Technical attributes (type, cable dimension (CD), hole diameter (A, B), overall length (C)): 201041, 3.0 x 5.6 mm, A 11.1, B 9.9, C 10.3 mm
| Version | cable gland | |
| Colour | black | |
| Length | 10.3 mm | |
| Material | polyamide | |
| max. clamping range | 5.6 mm | |
| max. operating temperature | 105 °C | |
| min. clamping range | 3 mm | |
| min. operating temperature | -35 °C | |
| spanner size | 11 mm |
| Country of origin | US |
| Customs tariff number | 39269097 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
