0 731 301 | Hengstler
Panel-mount function counter
Panel function counters, type Hengstler Tico 731-3.

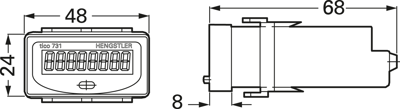

DIN dimensions: 24 x 48 mm, long case (68 mm), LCD (8-digit, 7.0 mm, range of values 0 to 99.999.999). Power supply: internal lithium battery. Retention of values: 7 years. Voltage input: 12 V to 250 V AC/DC (20 Hz): active edge positive. Reset: via keyboard input (lockable) or external reset. Input resistance: 50 kohm (static). Pulse duration: at least 25 ms/20 Hz. Operating temperatures: –10 to +50 °C. Connection: screw terminals. Mounting: with clamping frame. Front-panel cutout: 45 x 22 mm. Degree of protection: IP 65 at the front, IP 20 at the connections. Safety class: II to EN 61010.
Type: 301, pulse counter
| Connection | screw connection | |
| Width | 48 mm | |
| Installation depth | 68 mm | |
| Height | 24 mm | |
| Assembly | built-In mounting | |
| Degree of protection (IP) | IP65 | |
| Counting frequency | 20 Hz |
| Country of origin | CN |
| Customs tariff number | 90291000 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
