0 731 201 | Hengstler

Panel-mount function counter, 0 731 201

Order No.: 30K5020
EAN: 4099891455163
MPN:
0 731 201
0 731 201 Hengstler Pulse Counters

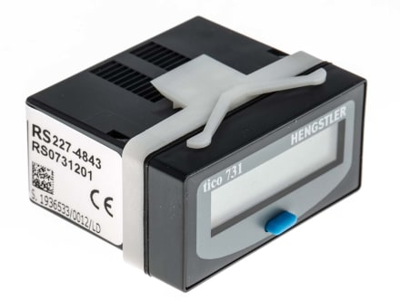

Image may differ
Unit Price (€ / pc.)
77.8141 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
77.81 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
77.8141 €

Panel function counters, type Hengstler Tico 731-2.

DIN dimensions: 24 x 48 mm, short case (40 mm). LCD (8-digit, 7.0 mm, range of values 0 to 99.999.999). Power supply: 12 to 24 VDC/5.0 mA. Retention of values in non-volatile memory: 10 years. Inputs: Clock (PNP, 100 Hz active edge positive) and Data (NPN, 100 Hz, active edge negative). Amplitude thresholds: < 0.7 V and> 5.0 V, max. 30 VDC. Input resistance: 50 kohm (static). Operating temperatures: –10 to +50 °C. Connection: screw terminals. Mounting: with clamping frame. Front-panel cutout: 45 x 22 mm. Degree of protection: IP 65 at the front, IP 20 at the connections. Safety class: II to EN 61010.

Type: 201, pulse counter

Technical specifications
Filter Property Value
Counting frequency 7.5 kHz
Degree of protection (IP) IP65
Assembly built-in mounting
Width 48 mm
Height 24 mm
Voltage 250 VAC
Connection screw connection
Logistics
Property Value
Country of origin CN
Customs tariff number 90291000
Compliance
Property Value
Date of RoHS guidelines 6/8/11
SVHC free Yes
RoHS conform Yes
