0 464 165 | Hengstler

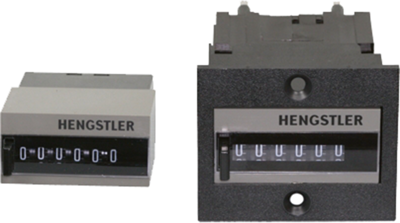

Panel-mount pulse counter
Product by Hengstler at Bürklin Elektronik
Panel pulse counters Hengstler 464 165, 24 VDC, zero reset button
6-digit, with zero reset button. Plug-in counter for any system configuration. Digit height: 2.0 x 4.0 mm. Connections: 9.3 x 1.6 mm round pins. Sampling rate: 25 pps in DC voltage counter mode and 10 pps in AC voltage counter mode. The specified voltage represents the operating voltage. Counter dimensions: 25 x 50 mm. .
| Connection | round pin | |
| Width | 25 mm | |
| Installation depth | 66 mm | |
| Height | 50 mm | |
| Pulse duration | 200 ms | |
| Assembly | built-In mounting | |
| Degree of protection (IP) | IP40 | |
| Voltage | 230 VAC | |
| Counting frequency | 25 Hz |
| Country of origin | DE |
| Customs tariff number | 90291000 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
