0 527 095 | Hengstler

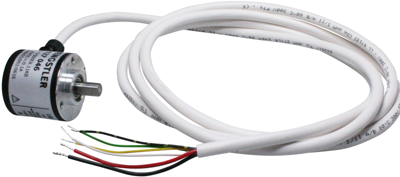

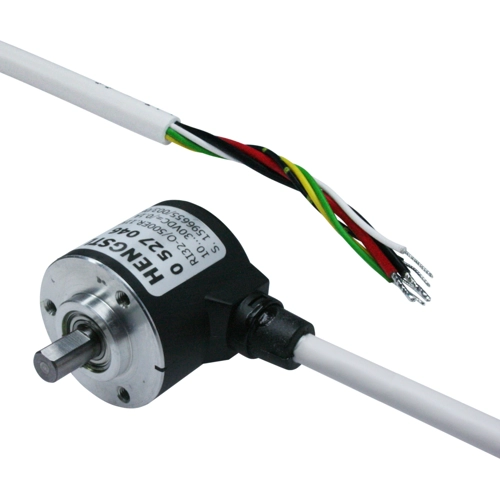

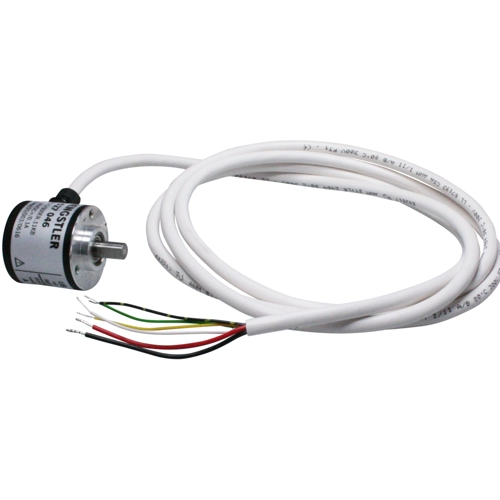

Incremental encoder, 5 V, 0 527 095
Incremental encoders, type Hengstler RI 32.

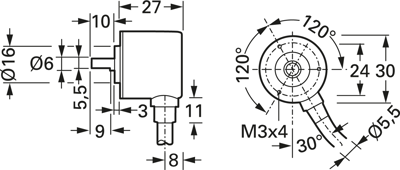

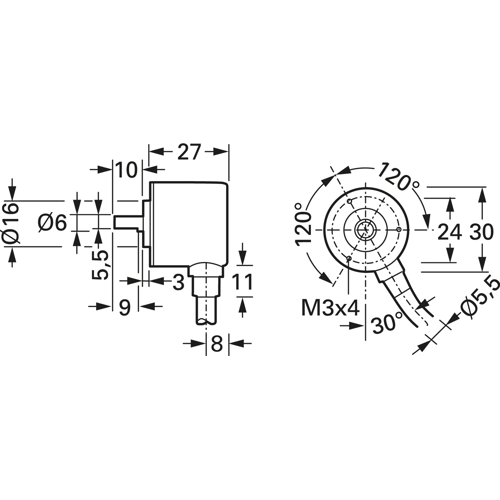

Smooth operation thanks to ball bearings and low torque, for small devices; Shaft diameter: 6.0 mm, shaft load limit: 10 N radial, 5.0 N axial, max. 6000 rpm, torque: 0.05 N/cm. Degree of protection: IP 50. Operating temperatures: –10 to +60 °C. Connection type: 1.5-m radial cable, package: plastic, flange: aluminum. Weight: 50 g.
Push-pull mode 5.0 VDC ±10 %, type RI 32-0/.
Technical attributes (type, resolution or number of measurement steps (divisions) within a measurement range): 100AR.11DB, resolution 100
Version | incremental encoder | |
Voltage | 5 V |
Country of origin | DE |
Customs tariff number | 90318020 |
RoHS conform | Yes |
Date of RoHS guidelines | 6/8/11 |
SVHC free | Yes |
