28931 | HELUKABEL

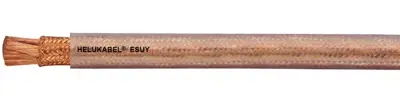

PVC-grounding cable, ESUY, 25 mm², 3192 x 0.1, transparent, outer Ø 9.5 mm, 28931
Unit Price (€ / mtr.)
13.2566 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Earth conductor, 28931, HELUKABEL
The 28931 is a earthing cable that offers special characteristics with low weights, high flexibility to a wide temperature range and the behavior in high temperature. The protective sheath over conductor assures the essential function for protection against the mechanical and chemical stresses.
Technical specifications
| Outer diameter | 9.5 mm | |
| Standard number | VDE 0283 | |
| Core insulation material | PVC | |
| Temperature range (active) | -5 °C to 70 °C | |
| Conductor category | CL.6 = finest stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 25 mm² | |
| Cable structure | 3192 x 0.1 | |
| Test voltage | 2 kV | |
| Colour | transparent | |
| Halogen free | No |
Download
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
