802182 | HELUKABEL
PUR data cable, CAN bus, 2-wire, 0.34 mm², AWG 22, purple, 802182
Order No.: 93F7646
EAN: 4060892315107
MPN:
802182
Unit Price (€ / mtr.)
4.3673 € *
Standard delivery time from the manufacturer is: 6 Weeks

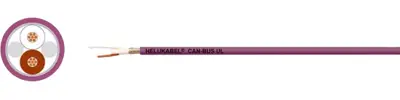

CAN Bus cable, 802182, HELUKABEL
This highly flexible CAN Bus cable is designed for guided continous motion in cable carriers. The 2-pair version is designed with star-quad twisting, i.e. diagonal conductors form an electrical pair and meets the requirements of the CAN standard.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | PE | |
| Colour | purple | |
| Number of cores | 2 | |
| Outer diameter | 6.9 mm | |
| Drag chain suitable | Yes | |
| AWG cross-section | AWG 22 | |
| Halogen free | Yes | |
| Bussystem | CAN bus | |
| Cable cross-section | 0.34 mm² | |
| Version | data cable | |
| Material | PUR | |
| Cable material | copper, bright | |
| Shielding | shielded | |
| Temperature range (unmoved) | -30 °C to 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
