920515 | HELUKABEL

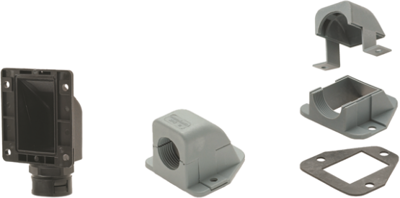

Flange screw connection, foldable, M25, IP65, black, 920515

Order No.: 93F9264
EAN: 4060892385131
MPN:
920515
Series: HSSV-KF
920515 HELUKABEL Cable Glands
Image may differ
Unit Price (€ / pc.)
8.0206 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
80.21 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
8.0206 €

Folding flange fitting, 920515, HELUKABEL

Opening flange angle for connection glands or cable glands. Flange angle opened to enable simple insertion of pre-assembled cables. Highly stable.

Features

  • Halogen-free
  • Phosphor-free
  • Cadmium-free
  • Easy to assemble, time and cost savings
  • Resistant to: fuels, mineral oils, greases, weak bases, weak acids
Technical specifications
Filter Property Value
Colour black
Degree of protection (IP) IP65
Length 69 mm
Product type flange screw connection
Version foldable
min. operating temperature -40 °C
Material PA
max. operating temperature 110 °C
Thread size M25
Logistics
Property Value
Customs tariff number 39174000
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
