166-11807 | HellermannTyton

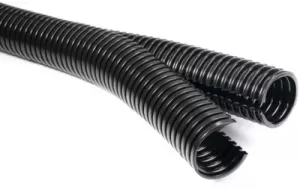

Corrugated hose, inside Ø 44 mm, outside Ø 53.3 mm, BR 170 mm, PA, black, 166-11807
NCNR (non cancelable / non returnable)
Unit Price (€ / mtr.)
32.249 € *
Standard delivery time from the manufacturer is: 7 Weeks
Non-Metallic Conduit, 166-11807, HELLERMANN TYTON
Cable Protection System, Non-Metallic Conduit System.
FEATURES
- Free of halogen, sulphur and phosphorus
- Abrasion resistant
- Can be opened and closed repeatedly

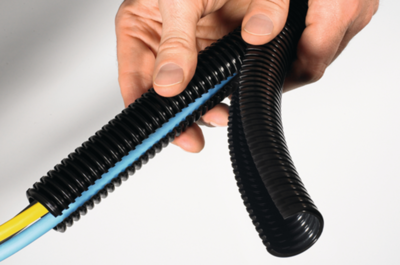

- Cables can be inserted laterally
Technical details
- Min. Temperature: -40°C
- Max. Temperature: 120°C
- Material: Polyamide
- Color: black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inner diameter | 44 mm | |
| Outer diameter | 53.3 mm | |
| Nominal width | 48 mm | |
| Bending radius | 170 mm | |
| Material | PA | |
| Colour | black | |
| Degree of protection (IP) | IP20 | |
| Flame-retardant | Yes | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 120 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 25 meters |
| Country of origin | DE |
| Customs tariff number | 39173200 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
