166-11406 | HellermannTyton

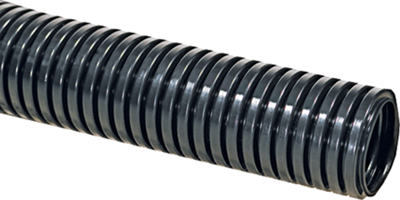

Corrugated hose, inside Ø 35.5 mm, outside Ø 42.5 mm, BR 70 mm, polyamide, black
Order No.: 91F4556
EAN: 4031026302621
MPN:
166-11406
HG-FR42-PA6-BK-25M
Series: HelaGuard PA6 Flammhemmend
Unit Price (€ / mtr.)
13.5303 € *
Available: 0 mtr.
Leadtime: 1 Week **
Total Price:
13.53 € *
Price list
Quantity
Price per unit*
1 mtr.
13.5303 €
25 mtr.
12.1737 €
50 mtr.
11.1622 €
100 mtr.
10.1507 €
500 mtr.
9.1392 €
*incl. VAT plus shipping costs
**Subject to prior sale
Plastic conduit, flame retardant series HelaGuard, type HellermannTyton HG-FR.
Ultra-flexible, long useful life. High resistance against deformation, impact- and abrasion-proof, free of halogen, sulfur and phosphor, resistant against solvents and oil and UV radiation; Material: polyamide 6 V0, flame retardant. Operating temperatures static/moving: –40 to +120 °C/–20 to +110 °C. Fire protection properties: to UL 94 V-0.
Technical attributes (type, outer diameter (OD), inner diameter (ID), bending radius (B), weight (g/m)): HG-FR42, OD 42.5, ID 35.5, B 70 mm, 165 g/m
Technical specifications
| Outer diameter | 42.5 mm | |
| Bending radius | 70 mm | |
| Colour | black | |
| Flame-retardant | Yes | |
| Inner diameter | 35.5 mm | |
| Material | polyamide | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -40 °C | |
| Nominal width | 36 mm | |
| Degree of protection (IP) | IP66 |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 39173200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
