166-11400 | HellermannTyton

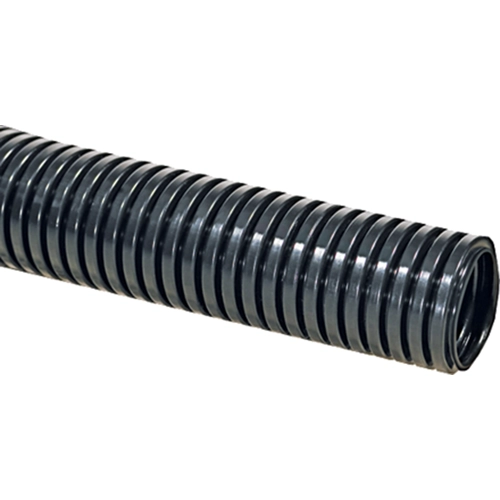

Corrugated hose, inside Ø 6.3 mm, outside Ø 10 mm, BR 15 mm, PA, black, 166-11400
Order No.: 91F4550
EAN: 4031026302560
MPN:
166-11400
HG-FR10-PA6-BK-50M
Series: HelaGuard PA6 Flammhemmend
Unit Price (€ / mtr.)
2.8560 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
2.86 € *
Price list
Quantity
Price per unit*
1 mtr.
2.8560 €
25 mtr.
2.5704 €
50 mtr.
2.3562 €
100 mtr.
2.1539 €
500 mtr.
1.9397 €
*incl. VAT plus shipping costs
Subject to prior sale
Plastic conduit, flame retardant series HelaGuard, type HellermannTyton HG-FR.
Ultra-flexible, long useful life. High resistance against deformation, impact- and abrasion-proof, free of halogen, sulfur and phosphor, resistant against solvents and oil and UV radiation; Material: polyamide 6 V0, flame retardant. Operating temperatures static/moving: –40 to +120 °C/–20 to +110 °C. Fire protection properties: to UL 94 V-0.
Technical attributes (type, outer diameter (OD), inner diameter (ID), bending radius (B), weight (g/m)): HG-FR10, OD 10, ID 6.3, B 15 mm, 19 g/m
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inner diameter | 6.3 mm | |
| Outer diameter | 10 mm | |
| Nominal width | 7.5 mm | |
| Bending radius | 15 mm | |
| Material | PA | |
| Colour | black | |
| Degree of protection (IP) | IP66 | |
| Flame-retardant | Yes | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 120 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 39173200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
