166-11209 | HellermannTyton

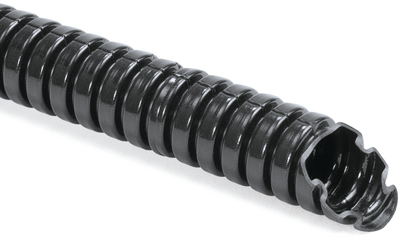

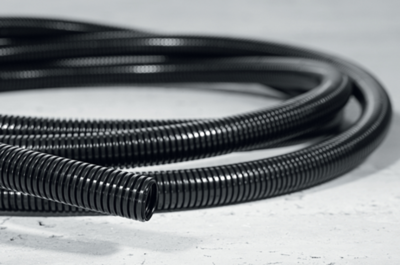

Corrugated hose, inside Ø 56.5 mm, outside Ø 67.2 mm, BR 110 mm, PA, black, 166-11209
Unit Price (€ / mtr.)
23.8952 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
23.90 € *
Price list
Quantity
Price per unit*
1 mtr.
23.8952 €
10 mtr.
22.0983 €
50 mtr.
19.7064 €
100 mtr.
17.9214 €
500 mtr.
16.7314 €
*incl. VAT plus shipping costs
Subject to prior sale
PA conduit, 166-11209, HELLERMANN TYTON
Polyamide protective hose, abrasion resistance.
FEATURES
- Abrasion resistance
- Resistant to solutions and oils
- Free of halogen, sulfur and phosphorus
- Good impact and shape resistance
Technical details
- Min. Temperature: -40°C
- Max. Temperature: 120°C
- Material: Polyamide
- Color: black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inner diameter | 56.5 mm | |
| Outer diameter | 67.2 mm | |
| Nominal width | 56 mm | |
| Bending radius | 110 mm | |
| Material | PA | |
| Colour | black | |
| Degree of protection (IP) | IP66 | |
| Flame-retardant | Yes | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 120 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 10 meters |
| Customs tariff number | 39173200 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
