166-11200 | HellermannTyton

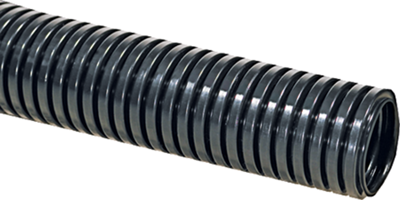

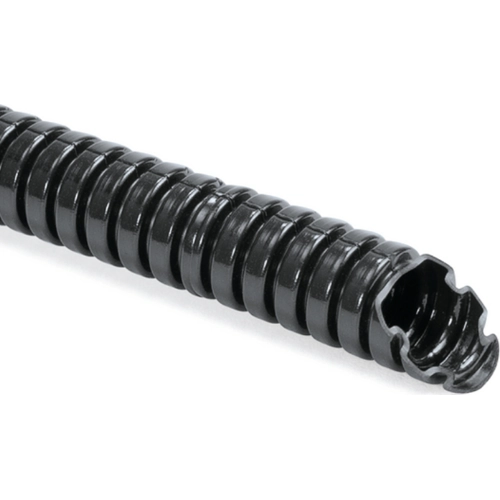

Corrugated hose, inside Ø 6.5 mm, outside Ø 10 mm, BR 15 mm, PA, black, 166-11200

Order No.: 91F4530
EAN: 4031026302393
MPN:
166-11200
HG-LW10-PA6-BK-50M
Series: HG-LW
HellermannTyton
166-11200 HellermannTyton Protective Tubes
Image may differ
Unit Price (€ / mtr.)
1.3447 € *
Available: 2 mtr.
Leadtime: 1 Week **
Total Price:
1.34 € *
Price list
Quantity
Price per unit*
1 mtr.
1.3447 €
10 mtr.
1.2495 €
50 mtr.
1.1067 €
100 mtr.
1.0115 €
500 mtr.
0.9401 €
*incl. VAT plus shipping costs
**Subject to prior sale

Plastic conduit series HelaGuard, type HellermannTyton HG-LW.

Ultra-flexible, long useful life and small bending radius, high impact resistance and resistance to deformation, free of halogen, sulfur and phosphor, resistant against solvents and oils; Material: polyamide 6 (PA6). Operating temperatures static/moving: –40 to +120 °C/–20 to +100 °C. Fire protection properties: self-extinguishing to EN 61386.

Technical attributes (type, outer diameter (OD), inner diameter (ID), bending radius (B), weight (g/m)): HG–LW10, OD 10, ID 6.5, B 15 mm, 18 g/m

Technical specifications
Outer diameter 10 mm
Bending radius 15 mm
Colour black
Flame-retardant No
Inner diameter 6.5 mm
Material PA
max. operating temperature 120 °C
min. operating temperature -40 °C
Nominal width 7.5 mm
Degree of protection (IP) IP66
Logistics
Country of origin GB
Customs tariff number 39173200
Original Packaging Reel with 50 meters
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
