166-11206 | HellermannTyton

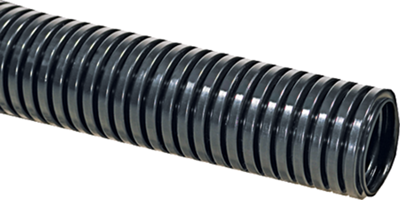

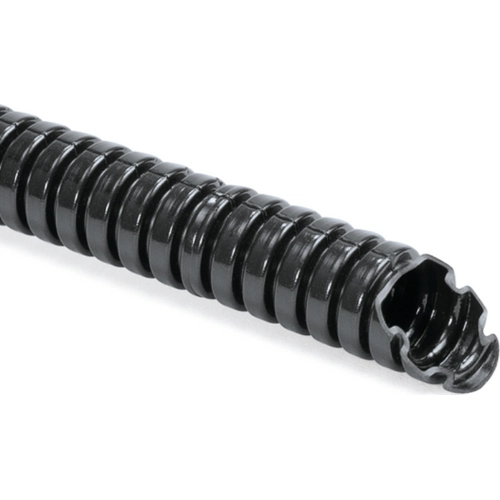

Corrugated hose, inside Ø 28.3 mm, outside Ø 34.5 mm, BR 55 mm, PA, black, 166-11206
Unit Price (€ / mtr.)
5.4621 € *
Available: 100 mtr.
Total Price:
5.46 € *
Price list
Quantity
Price per unit*
1 mtr.
5.4621 €
10 mtr.
5.0456 €
50 mtr.
4.5101 €
100 mtr.
4.0936 €
500 mtr.
3.8199 €
*incl. VAT plus shipping costs
Subject to prior sale
Plastic conduit series HelaGuard, type HellermannTyton HG-LW.
Ultra-flexible, long useful life and small bending radius, high impact resistance and resistance to deformation, free of halogen, sulfur and phosphor, resistant against solvents and oils; Material: polyamide 6 (PA6). Operating temperatures static/moving: –40 to +120 °C/–20 to +100 °C. Fire protection properties: self-extinguishing to EN 61386.
Technical attributes (type, outer diameter (OD), inner diameter (ID), bending radius (B), weight (g/m)): HG–LW34, OD 34.5, ID 28.1, B 55 mm, 110 g/m
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inner diameter | 28.3 mm | |
| Outer diameter | 34.5 mm | |
| Nominal width | 29 mm | |
| Bending radius | 55 mm | |
| Material | PA | |
| Colour | black | |
| Degree of protection (IP) | IP66 | |
| Flame-retardant | No | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 120 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Original Packaging | Reel with 50 meters |
| Customs tariff number | 39173200 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
