166-11201 | HellermannTyton

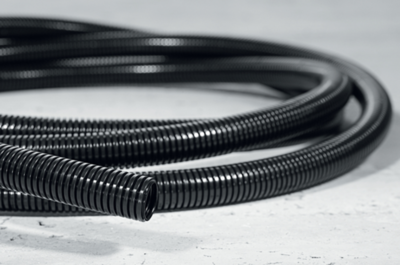

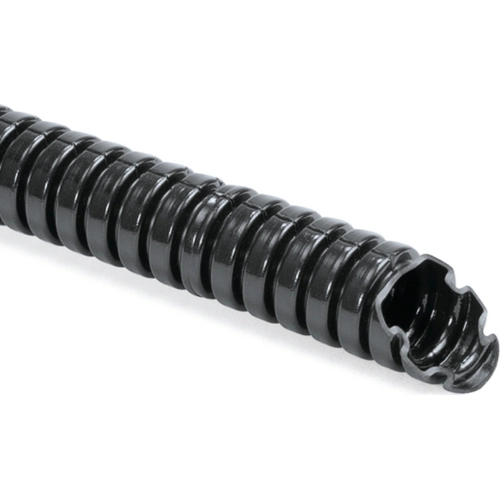

Corrugated hose, inside Ø 8.3 mm, outside Ø 11.5 mm, BR 20 mm, PA, black, 166-11201
Unit Price (€ / mtr.)
1.4399 € *
Available: 24 mtr.
Total Price:
1.44 € *
Price list
Quantity
Price per unit*
1 mtr.
1.4399 €
10 mtr.
1.3328 €
50 mtr.
1.1900 €
100 mtr.
1.0829 €
500 mtr.
1.0115 €
*incl. VAT plus shipping costs
Subject to prior sale
PA conduit, 166-11201, HELLERMANN TYTON
Polyamide protective hose, abrasion resistance.
FEATURES
- Abrasion resistance
- Resistant to solutions and oils
- Free of halogen, sulfur and phosphorus
- Good impact and shape resistance
Technical details
- Min. Temperature: -40°C
- Max. Temperature: 120°C
- Material: Polyamide
- Color: black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inner diameter | 8.3 mm | |
| Outer diameter | 11.5 mm | |
| Nominal width | 8.5 mm | |
| Bending radius | 20 mm | |
| Material | PA | |
| Colour | black | |
| Degree of protection (IP) | IP66 | |
| Flame-retardant | No | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 120 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 39173200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
