166-11114 | HellermannTyton

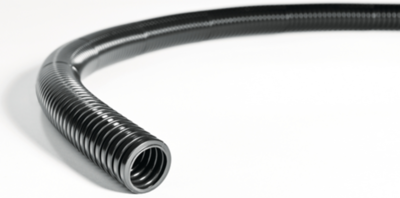

Corrugated hose, inside Ø 47.2 mm, outside Ø 54.5 mm, BR 80 mm, polyamide, black
Unit Price (€ / mtr.)
16.4934 € *
Available: 0 mtr.
Leadtime: 1 Week **
Total Price:
16.49 € *
Price list
Quantity
Price per unit*
1 mtr.
16.4934 €
10 mtr.
15.2558 €
50 mtr.
13.6017 €
100 mtr.
12.3641 €
500 mtr.
11.5430 €
*incl. VAT plus shipping costs
**Subject to prior sale
Non-Metallic Conduit, 166-11114, HELLERMANN TYTON
Non-Metallic conduit cable protection systems, HG-SW PA6 standard weight.
FEATURES
- Very flexible and high fatigue life
- Very abrasion resistance
- High impact strength, recovers if crushed
- Free of halogen, sulphur and phosphorus
Technical details
- Min. Temperature: -40°C
- Max. Temperature: 120°C
- Material: Polyamide
- Color: black
Technical specifications
| Outer diameter | 54.5 mm | |
| Bending radius | 80 mm | |
| Colour | black | |
| Flame-retardant | No | |
| Inner diameter | 47.2 mm | |
| Material | polyamide | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -40 °C | |
| Nominal width | 48 mm | |
| Degree of protection (IP) | IP66 |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 39173200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
