166-11109 | HellermannTyton

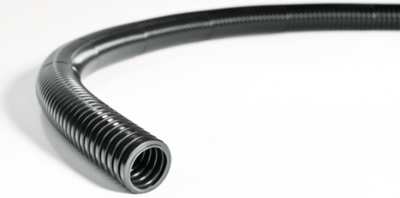

Corrugated hose, inside Ø 56.3 mm, outside Ø 67.2 mm, BR 130 mm, PA, black, 166-11109
Unit Price (€ / mtr.)
30.9876 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
30.99 € *
Price list
Quantity
Price per unit*
1 mtr.
30.9876 €
10 mtr.
28.6671 €
50 mtr.
25.5612 €
100 mtr.
23.2407 €
500 mtr.
21.6937 €
*incl. VAT plus shipping costs
Subject to prior sale
Non-Metallic Conduit, 166-11109, HELLERMANN TYTON
Non-Metallic conduit cable protection systems, HG-SW PA6 standard weight.
FEATURES
- Very flexible and high fatigue life
- Very abrasion resistance
- High impact strength, recovers if crushed
- Free of halogen, sulphur and phosphorus
Technical details
- Min. Temperature: -40°C
- Max. Temperature: 120°C
- Material: Polyamide
- Color: black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inner diameter | 56.3 mm | |
| Outer diameter | 67.2 mm | |
| Nominal width | 56 mm | |
| Bending radius | 130 mm | |
| Material | PA | |
| Colour | black | |
| Degree of protection (IP) | IP66 | |
| Flame-retardant | Yes | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 120 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Original Packaging | Reel with 10 meters |
| Customs tariff number | 39173200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
