167-00533 | HellermannTyton

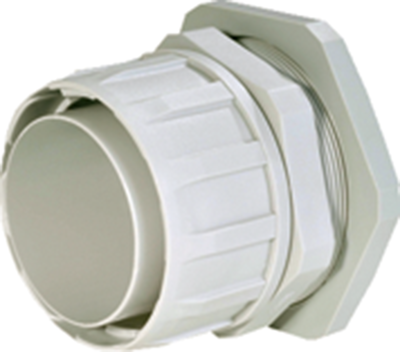

Straight hose screw fitting, M25, 21 mm, PP, IP54, gray, (L) 49.8 mm, 167-00533

Order No.: 91F4512
EAN: 4031026277486
MPN:
167-00533
FG21-M25-PP-GY-X1
Series: TV
HellermannTyton
167-00533 HellermannTyton Hose Fittings
Image may differ
Unit Price (€ / pc.)
6.5450 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
6.55 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5450 €
5 pcs.
6.1880 €
10 pcs.
5.8310 €
25 pcs.
5.4740 €
50 pcs.
5.0932 €
*incl. VAT plus shipping costs
**Subject to prior sale

Fittings for corrugated conduit, type TV../NV.

Material: polypropylene (PP). Degree of protection: IP 54. Color: gray. Operating temperatures: –35 to +80 °C. Fire protection properties: to UL 94 V-2. The screwed fittings are supplied with locknut.

Metric thread, type TV.

Technical attributes (type, conduit diameter, thread): TV16/M25, 21 mm, M 25

Technical specifications
Colour gray
Thread size M25
Length 49.8 mm
Material PP
max. operating temperature 80 °C
min. operating temperature -35 °C
Nominal width 21 mm
Degree of protection (IP) IP54
Logistics
Country of origin DE
Customs tariff number 39269097
Original Packaging Bag with 10 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
