166-41209 | HellermannTyton
90° hose screw fitting, M63, NPB/PA, IP66/IP67/IP68/IP69K, metal, 166-41209
Order No.: 42P7524
EAN: 4031026411057
MPN:
166-41209
PSRSC63-90FMC-M63-NPB/PA6-ML
Series: PSRSC-90FMC
Unit Price (€ / pc.)
132.5065 € *
Standard delivery time from the manufacturer is: 3 Weeks

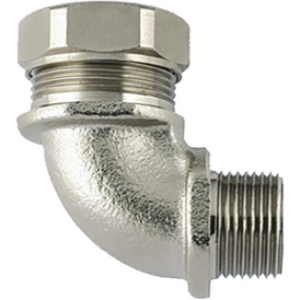

Fitting, 166-41209, HellermannTyton
Compression Fitting with rigid External Thread for Spiral-Reinforced PVC Conduits 90° ø63 mm M63.
Features
- Multipart 90° compression fitting including elastomeric
- Can be used for knockouts or threaded entries as fitting rotates until tightened
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | NPB/PA | |
| Colour | metal | |
| max. operating temperature | 135 °C | |
| Thread size | M63 | |
| min. operating temperature | -50 °C | |
| Degree of protection (IP) | IP66/IP67/IP68/IP69K |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Original Packaging | Bag with 1 piece |
| Customs tariff number | 74122000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
