336-00319 | HellermannTyton
Heatshrink tubing, 2:1, (3.05/1.83 mm), PTFE, transparent, 336-00319
Unit Price (€ / pc.)
15.1130 € *
Available: 48 pcs.
Total Price:
15.11 € *
Price list
Quantity
Price per unit*
1 pcs.
15.1130 €
10 pcs.
13.9825 €
25 pcs.
12.8520 €
50 pcs.
12.0904 €
100 pcs.
11.3407 €
*incl. VAT plus shipping costs
Subject to prior sale

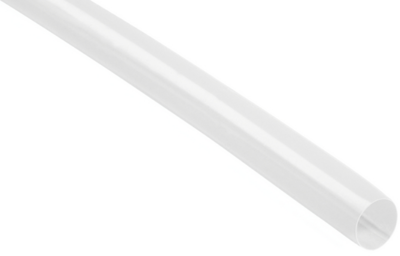

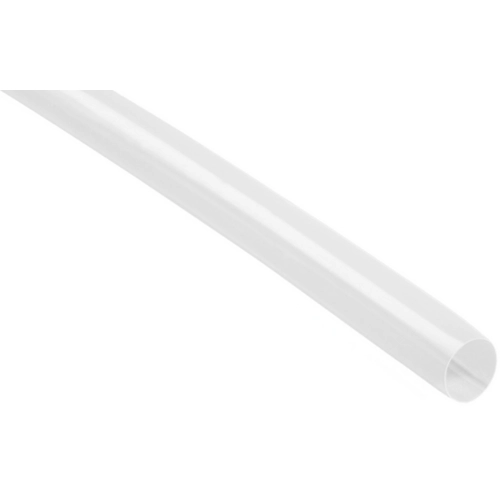

Heat shrinkable tubing, 336-00319, HellermannTyton
The 336-00319 is ideal for high temperature applications, when resistance to aggressive fluids is required or a very thin walled tubing is needed, for example in pH-measuring instruments. TFE tubing is also used to reduce movement due to friction, covering cylinders for example.
Features
- Very high temperature resistance
- Extra thin wall translucent tubing
- High abrasion resistance and good resistance against aggressive chemicals
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contains glue inside | No | |
| Inner diameter before shrinkage | 3.05 mm | |
| max. operating temperature | 260 °C | |
| Length | 1.2 m | |
| min. operating temperature | -65 °C | |
| Colour | transparent | |
| Inner diameter after shrinkage | 1.83 mm | |
| Material | PTFE | |
| Wall thickness | 0.3 mm | |
| Shrinking rate | 2:1 | |
| Shrinking temperature | 330 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39173200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
