336-00079 | HellermannTyton

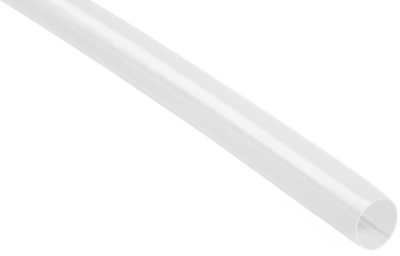

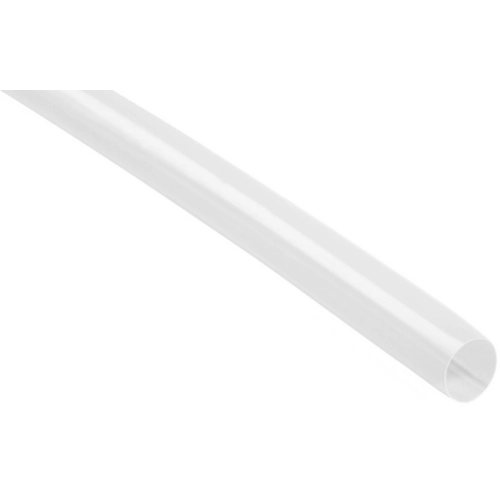

Heatshrink tubing, 2:1, (0.86/0.38 mm), polytetrafluoroethylene, transparent

Order No.: 42P5915
EAN: 4031026149257
MPN:
336-00079
TFE2-30-PTFE-CL
Series: TFE2
HellermannTyton
default L
front L
Image may differ
Unit Price (€ / pc.)
11.4240 € *
Available: 35 pcs.
Leadtime: 5 Weeks **
Total Price:
11.42 € *
Price list
Quantity
Price per unit*
1 pcs.
11.4240 €
10 pcs.
10.5672 €
25 pcs.
9.7104 €
50 pcs.
9.1392 €
100 pcs.
8.5680 €
*incl. VAT plus shipping costs
**Subject to prior sale

Heat shrinkable tubing, 336-00079, HellermannTyton

The 336-00079 is ideal for high temperature applications, when resistance to aggressive fluids is required or a very thin walled tubing is needed, for example in pH-measuring instruments. TFE tubing is also used to reduce movement due to friction, covering cylinders for example.

Features

  • Very high temperature resistance
  • Extra thin wall translucent tubing
  • High abrasion resistance and good resistance against aggressive chemicals
Technical specifications
Colour transparent
Inner diameter after shrinkage 0.38 mm
Inner diameter before shrinkage 0.86 mm
contains glue inside No
Length 1.2 m
Material polytetrafluoroethylene
max. operating temperature 260 °C
min. operating temperature -65 °C
Shrinking rate 2:1
Shrinking temperature 330 °C
Wall thickness 0.23 mm
Logistics
Country of origin DE
Customs tariff number 39173200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Inner diameter before shrinkage
Wall thickness
Inner diameter after shrinkage
Material
Length
Colour
contains glue inside
min. operating temperature
Shrinking rate
Shrinking temperature
max. operating temperature
1 item in 16 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Inner diameter before shrinkage
Wall thickness
Inner diameter after shrinkage
Material
Length
Colour
contains glue inside
min. operating temperature
Shrinking rate
Shrinking temperature
max. operating temperature
Heatshrink tubing, 2:1, (0.96/0.46 mm), polytetrafluoroethylene, transparent
Order No.:
 42P5916
Manufacturer:
 HellermannTyton
Manufacturer SKU:
 336-00099
Available: 49 pcs. Leadtime: 5 Weeks **
Total Price: 12.26 € *
1 pcs.
12.2570 €
10 pcs.
11.3407 €
25 pcs.
10.4244 €
50 pcs.
9.8056 €
100 pcs.
9.1987 €
0.96 mm
0.23 mm
0.46 mm
polytetrafluoroethylene
1.2 m
transparent
No
-65 °C
2:1
330 °C
260 °C
Heatshrink tubing, 2:1, (3.05/1.83 mm), polytetrafluoroethylene, transparent
Order No.:
 42P5923
Manufacturer:
 HellermannTyton
Manufacturer SKU:
 336-00319
Available: 6 pcs. Leadtime: 5 Weeks **
Total Price: 15.11 € *
1 pcs.
15.1130 €
10 pcs.
13.9825 €
25 pcs.
12.8520 €
50 pcs.
12.0904 €
100 pcs.
11.3407 €
3.05 mm
0.3 mm
1.83 mm
polytetrafluoroethylene
1.2 m
transparent
No
-65 °C
2:1
330 °C
260 °C
Heatshrink tubing, 2:1, (0.86/0.38 mm), polytetrafluoroethylene, transparent
Order No.:
 42P5915
Manufacturer:
 HellermannTyton
Manufacturer SKU:
 336-00079
Available: 35 pcs. Leadtime: 5 Weeks **
Total Price: 11.42 € *
1 pcs.
11.4240 €
10 pcs.
10.5672 €
25 pcs.
9.7104 €
50 pcs.
9.1392 €
100 pcs.
8.5680 €
0.86 mm
0.23 mm
0.38 mm
polytetrafluoroethylene
1.2 m
transparent
No
-65 °C
2:1
330 °C
260 °C
Heatshrink tubing, 2:1, (2.36/1.55 mm), polytetrafluoroethylene, transparent
Order No.:
 42P5922
Manufacturer:
 HellermannTyton
Manufacturer SKU:
 336-00249
Available: 0 pcs. Leadtime: 5 Weeks **
Total Price: 15.47 € *
1 pcs.
15.4700 €
10 pcs.
14.3157 €
25 pcs.
13.1495 €
50 pcs.
12.3760 €
100 pcs.
11.6025 €
2.36 mm
0.3 mm
1.55 mm
polytetrafluoroethylene
1.2 m
transparent
No
-65 °C
2:1
330 °C
260 °C
Heatshrink tubing, 2:1, (1.17/0.56 mm), polytetrafluoroethylene, transparent
Order No.:
 42P5917
Manufacturer:
 HellermannTyton
Manufacturer SKU:
 336-00109
Available: 0 pcs. Leadtime: 5 Weeks **
Total Price: 12.26 € *
1 pcs.
12.2570 €
10 pcs.
11.3407 €
25 pcs.
10.4244 €
50 pcs.
9.8056 €
100 pcs.
9.1987 €
1.17 mm
0.23 mm
0.56 mm
polytetrafluoroethylene
1.2 m
transparent
No
-65 °C
2:1
330 °C
260 °C
Heatshrink tubing, 2:1, (1.93/1.25 mm), polytetrafluoroethylene, transparent
Order No.:
 42P5921
Manufacturer:
 HellermannTyton
Manufacturer SKU:
 336-00199
Available: 0 pcs. Leadtime: 5 Weeks **
Total Price: 14.04 € *
1 pcs.
14.0420 €
10 pcs.
12.9948 €
25 pcs.
11.9357 €
50 pcs.
11.2336 €
100 pcs.
10.5315 €
1.93 mm
0.3 mm
1.25 mm
polytetrafluoroethylene
1.2 m
transparent
No
-65 °C
2:1
330 °C
260 °C
