336-00249 | HellermannTyton

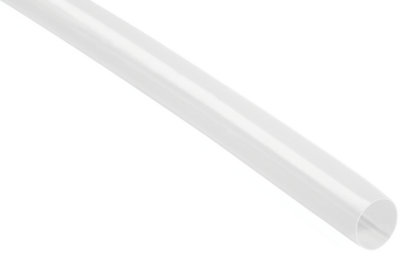

Heatshrink tubing, 2:1, (2.36/1.55 mm), PTFE, transparent, 336-00249
Unit Price (€ / pc.)
15.4700 € *
Available: 39 pcs.
Total Price:
15.47 € *
Price list
Quantity
Price per unit*
1 pcs.
15.4700 €
10 pcs.
14.3157 €
25 pcs.
13.1495 €
50 pcs.
12.3760 €
100 pcs.
11.6025 €
*incl. VAT plus shipping costs
Subject to prior sale
Heat shrinkable tubing, 336-00249, HellermannTyton
The 336-00249 is ideal for high temperature applications, when resistance to aggressive fluids is required or a very thin walled tubing is needed, for example in pH-measuring instruments. TFE tubing is also used to reduce movement due to friction, covering cylinders for example.
Features
- Very high temperature resistance
- Extra thin wall translucent tubing
- High abrasion resistance and good resistance against aggressive chemicals
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | transparent | |
| Shrinking rate | 2:1 | |
| contains glue inside | No | |
| Wall thickness | 0.3 mm | |
| Inner diameter after shrinkage | 1.55 mm | |
| Material | PTFE | |
| max. operating temperature | 260 °C | |
| min. operating temperature | -65 °C | |
| Shrinking temperature | 330 °C | |
| Inner diameter before shrinkage | 2.36 mm | |
| Length | 1.2 m |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39173200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
