323-20500 | HellermannTyton

Heatshrink tubing, 4:1, (55/16 mm), PE, crosslinked, black, 323-20500

Order No.: 90F968
EAN: 4031026240268
MPN:
323-20500
MA47-50/16-PO-X-BK
Series: MA47

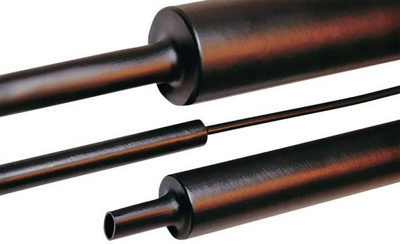

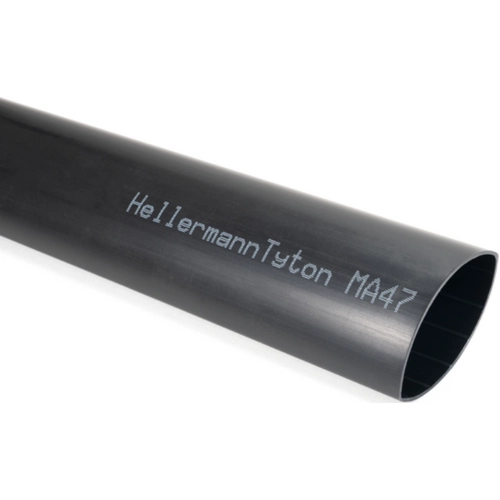

323-20500 HellermannTyton Heat Shrink Tubing
Image may differ
Unit Price (€ / pc.)
32.5941 € *
Available: 1 pcs.
Leadtime: 1 Week **
Total Price:
32.59 € *
Price list
Quantity
Price per unit*
1 pcs.
32.5941 €
5 pcs.
29.7262 €
10 pcs.
27.5009 €
25 pcs.
25.7516 €
50 pcs.
24.3236 €
*incl. VAT plus shipping costs
**Subject to prior sale

Heat shrinkable tubing, 323-20500, HellermannTyton

This product Is a heat shrinkable tubing with insulation and protection of low voltage cable joints and terminations above and below ground.

Features

  • Medium wall tubing with robust insulation characteristics

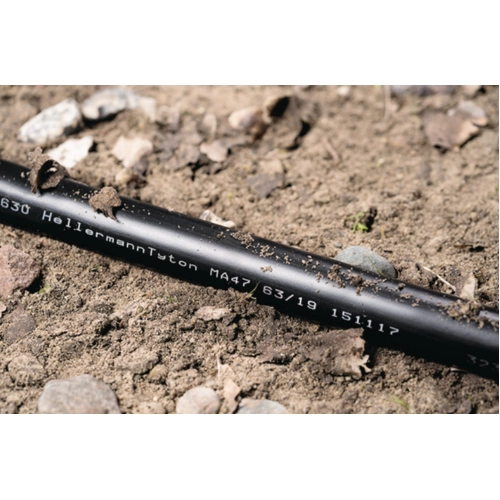

  • Shrink tubing for above and underground cable applications
  • Protects cable joints and terminations in low voltage applications
  • Coated inside with thermoplastic adhesive
  • Protects against humidity and other environmental impacts after shrinking
Technical specifications
Shrinking rate 4:1
Inner diameter before shrinkage 55 mm
Inner diameter after shrinkage 16 mm
Length 1 m
min. operating temperature -55 °C
max. operating temperature 110 °C
contains glue inside Yes
Wall thickness 2.7 mm
Colour black
Material PE, crosslinked
Shrinking temperature 120 °C
Inch Size 2
Logistics
Country of origin CN
Customs tariff number 39173200
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
