323-20400 | HellermannTyton
Heatshrink tubing, 4:1, (40/12 mm), polyolefine, cross-linked, black
Unit Price (€ / pc.)
25.7159 € *
Available: 13 pcs.
Leadtime: 1 Week **
Total Price:
25.72 € *
Price list
Quantity
Price per unit*
1 pcs.
25.7159 €
5 pcs.
23.4549 €
10 pcs.
21.6937 €
25 pcs.
20.3133 €
50 pcs.
19.1947 €
*incl. VAT plus shipping costs
**Subject to prior sale

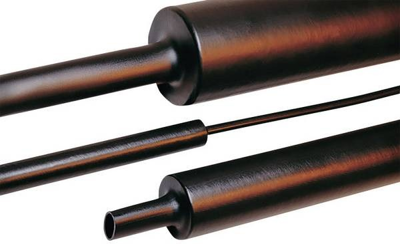

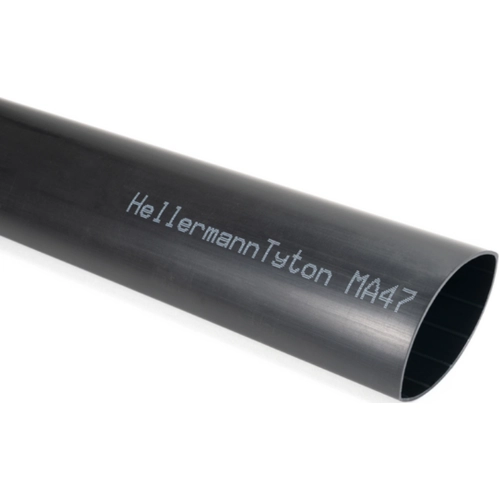

Heat shrinkable tubing, 323-20400, HellermannTyton
This product Is a heat shrinkable tubing with insulation and protection of low voltage cable joints and terminations above and below ground.
Features
- Medium wall tubing with robust insulation characteristics

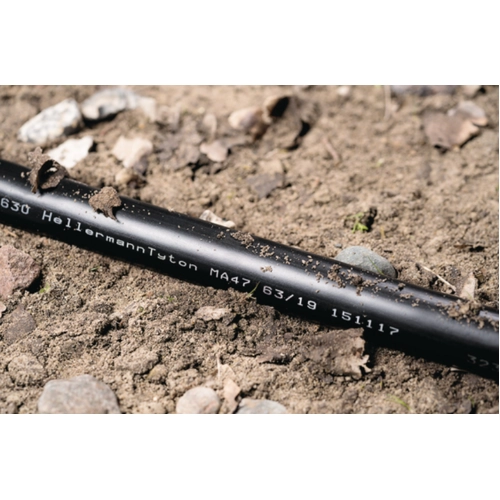

- Shrink tubing for above and underground cable applications
- Protects cable joints and terminations in low voltage applications
- Coated inside with thermoplastic adhesive
- Protects against humidity and other environmental impacts after shrinking
Technical specifications
| Colour | black | |
| Inner diameter after shrinkage | 12 mm | |
| Inner diameter before shrinkage | 40 mm | |
| contains glue inside | Yes | |
| Length | 1 m | |
| Material | polyolefine, cross-linked | |
| max. operating temperature | 110 °C | |
| min. operating temperature | -55 °C | |
| Shrinking rate | 4:1 | |
| Shrinking temperature | 120 °C | |
| Wall thickness | 2.6 mm | |
| Inch Size | 1-1/2 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 39173200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
