321-20900 | HellermannTyton

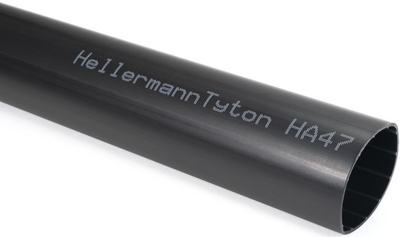

Heatshrink tubing, 4:1, (105/30 mm), PE, crosslinked, 321-20900
Unit Price (€ / pc.)
69.6150 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
69.62 € *
Price list
Quantity
Price per unit*
1 pcs.
69.6150 €
5 pcs.
65.7475 €
10 pcs.
61.8800 €
25 pcs.
58.0125 €
50 pcs.
54.1450 €
*incl. VAT plus shipping costs
Subject to prior sale

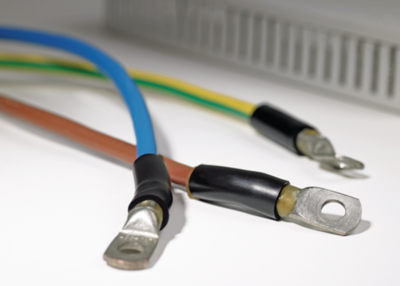

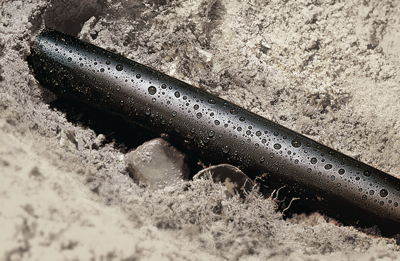

Thick-walled and robust heat shrink tubing with thermoplastic inner adhesive, Extremely resistant to mechanical stresses, Resistant to solvents, acids and alkalis, Due to the high shrink rate, the tubing easily adapts to large diameter differences, Protects reliably against moisture and other environmental influences, Reliable insulation and protection of cable connections and terminations, also for use in the ground. Strain relief for cable-to-connector transitions and protection against extreme mechanical stress.

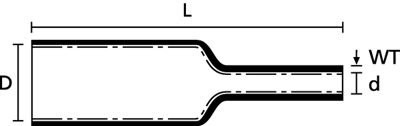

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shrinking rate | 4:1 | |
| Inner diameter before shrinkage | 105 mm | |
| Inner diameter after shrinkage | 30 mm | |
| Length | 1 m | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 110 °C | |
| contains glue inside | Yes | |
| Wall thickness | 4.3 mm | |
| Material | PE, crosslinked | |
| Shrinking temperature | 120 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 1 piece |
| Customs tariff number | 39173200 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
