321-20680 | HellermannTyton
Heatshrink tubing, 3:1, (68/22 mm), polyolefine, cross-linked, black
As a private customer, you can buy this item as soon as we have it back in stock.

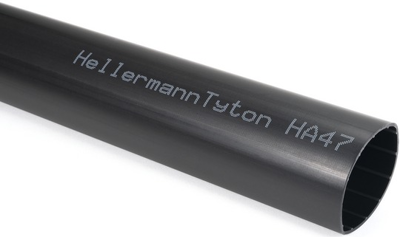

Heat shrinkable tubing, 321-20680, HellermannTyton

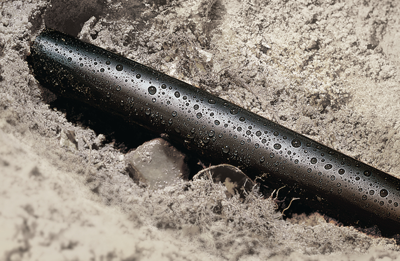

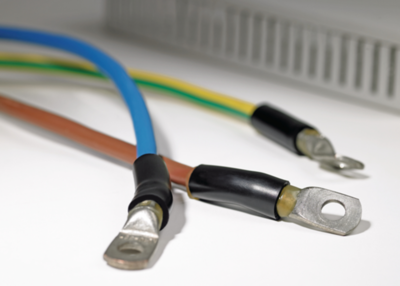

The 321-20680 is a heat shruinkable tubing used for low voltage power applications. The toughness and wheatherability makes it well suited for exposed applications and underground cable joints and cable terminations.
Features
- Thick wall polyolefin adhesive-lined sleeving
- Thermoplastic adhesive protects against moisture and weathering

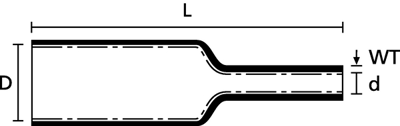

Technical specifications
| Colour | black | |
| Inner diameter after shrinkage | 22 mm | |
| Inner diameter before shrinkage | 68 mm | |
| contains glue inside | Yes | |
| Length | 1 m | |
| Material | polyolefine, cross-linked | |
| max. operating temperature | 110 °C | |
| min. operating temperature | -55 °C | |
| Shrinking rate | 3:1 | |
| Shrinking temperature | 120 °C | |
| Wall thickness | 4 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 39173200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
