416-17033 | HellermannTyton

Heatshrink cap, 1617-1-B8W

Order No.: 90F767
EAN: 5022660647185
MPN:
416-17033
1617-1-B8W-PEX-BK
Series: HEK

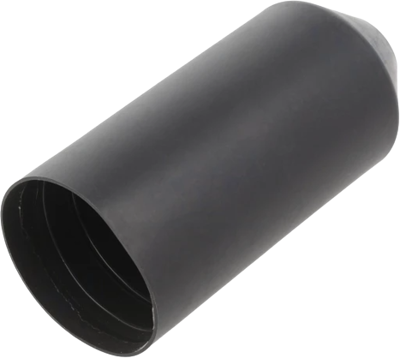

416-17033 HellermannTyton Heat Shrink Caps Image 1
416-17033 HellermannTyton Heat Shrink Caps Image 2
Image may differ
Unit Price (€ / pc.)
15.4105 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
15.41 € *
Price list
Quantity
Price per unit*
1 pcs.
15.4105 €
10 pcs.
14.5061 €
100 pcs.
13.6017 €
500 pcs.
12.6973 €
1000 pcs.
11.7929 €
*incl. VAT plus shipping costs
**Subject to prior sale

End cap, 416-17033, HellermannTyton

This end cap is suitable for use on both polymeric and paper insulated, lead jacketed cables which may include aluminium or steel armouring.

Features

  • Seal cables during storage or transportation
  • Adhesive lining for excellent environmental sea
  • High shrink ratio to minimise number of sizes needed
  • Can be fitted with air valves for pressurised cable applications
Technical specifications
Shrinking rate 3:1
Inner diameter before shrinkage 75 mm
Inner diameter after shrinkage 32 mm
Length 140 mm
min. operating temperature -55 °C
max. operating temperature 80 °C
contains glue inside No
Wall thickness 4 mm
Colour schwarz
Material PE
Shrinking temperature 135 °C
Inch Size 3
Logistics
Country of origin CN
Customs tariff number 39174000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
