416-12046 | HellermannTyton

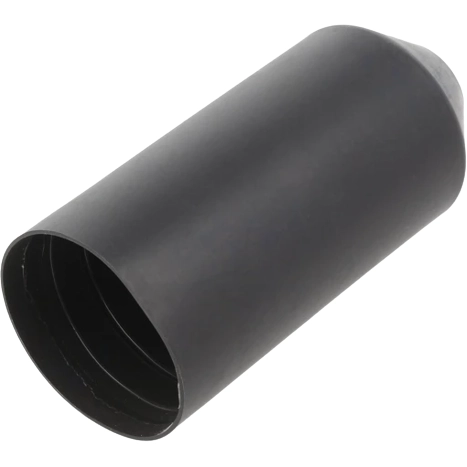

Heatshrink cap, 1612-1-B8W
Active
Product by HellermannTyton at Bürklin Elektronik
Heatshrink caps, type HellermannTyton HEK.
As end cap. Thermoplastic adhesive lining, robust; Material: polyolefin, chemically cross-linked (PEX). Color: black. Shrinking rate: to 3 : 1. Shrinking temperature: as of +135 °C. Operating temperatures: –55 to +80 °C. Dielectric strength: 15 kV/mm. Fire protection properties: compliant with ASTM D635.

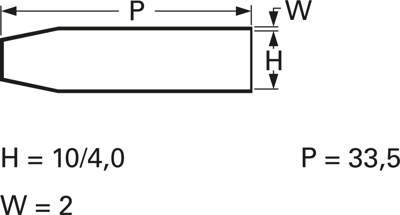

Technical attributes (type. Dimension H pre-shrinking/post-shrinking ±10 %. Dimension P post-shrinking ±10 %. Dimension W post-shrinking ±20 %): 1612-1-B8W, H 10/4.0, P 33.5, W 2.0 mm
| Colour | black | |
| Inner diameter after shrinkage | 4 mm | |
| Inner diameter before shrinkage | 10 mm | |
| contains glue inside | No | |
| Material | polyolefine | |
| max. operating temperature | 80 °C | |
| min. operating temperature | -55 °C | |
| Shrinking rate | 3:1 | |
| Shrinking temperature | 135 °C | |
| Wall thickness | 2 mm |
| Country of origin | CN |
| Customs tariff number | 39174000 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
