416-15035 | HellermannTyton

Heatshrink cap, 1615-1-B8W

Order No.: 90F765
EAN: 5022660436918
MPN:
416-15035
1615-1-B8W-PEX-BK
Series: HEK

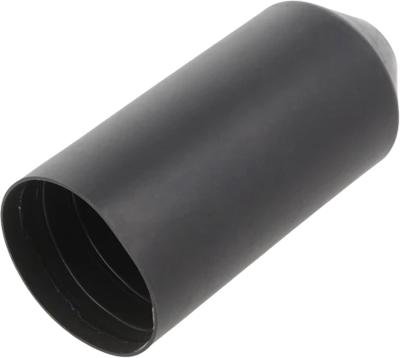

416-15035 HellermannTyton Heat Shrink Caps Image 1

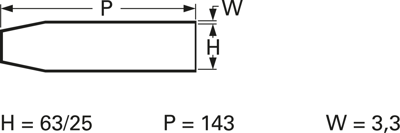

416-15035 HellermannTyton Heat Shrink Caps Image 2
Image may differ
Unit Price (€ / pc.)
11.9714 € *
Available: 1 pcs.
Leadtime: 1 Week **
Total Price:
11.97 € *
Price list
Quantity
Price per unit*
1 pcs.
11.9714 €
10 pcs.
11.2693 €
100 pcs.
10.5672 €
500 pcs.
9.8651 €
1000 pcs.
9.1630 €
*incl. VAT plus shipping costs
**Subject to prior sale

End cap, 416-15035, HellermannTyton

This end cap is suitable for use on both polymeric and paper insulated, lead jacketed cables which may include aluminium or steel armouring.

Features

  • Seal cables during storage or transportation
  • Adhesive lining for excellent environmental sea
  • High shrink ratio to minimise number of sizes needed
  • Can be fitted with air valves for pressurised cable applications
Technical specifications
Shrinking rate 3:1
Inner diameter before shrinkage 62 mm
Inner diameter after shrinkage 23 mm
Length 132 mm
min. operating temperature -55 °C
max. operating temperature 80 °C
contains glue inside No
Wall thickness 3.8 mm
Colour schwarz
Material PE
Shrinking temperature 135 °C
Inch Size 2
Logistics
Country of origin CN
Customs tariff number 39174000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
