416-14047 | HellermannTyton
Heatshrink cap, 1614-1-B8W
Unit Price (€ / pc.)
7.0210 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
7.02 € *
Price list
Quantity
Price per unit*
1 pcs.
7.0210 €
10 pcs.
6.6045 €
100 pcs.
6.1999 €
500 pcs.
5.7834 €
1000 pcs.
5.3669 €
*incl. VAT plus shipping costs
Subject to prior sale

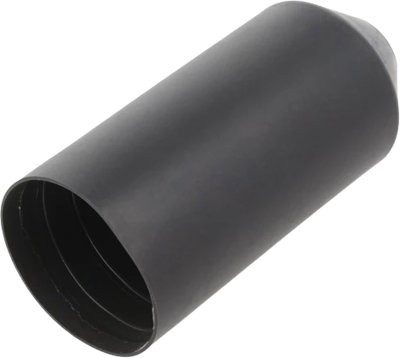

End cap, 416-14047, HellermannTyton
This end cap is suitable for use on both polymeric and paper insulated, lead jacketed cables which may include aluminium or steel armouring.
Features
- Seal cables during storage or transportation
- Adhesive lining for excellent environmental sea
- High shrink ratio to minimise number of sizes needed
- Can be fitted with air valves for pressurised cable applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shrinking rate | 3:1 | |
| Inner diameter before shrinkage | 40 mm | |
| Inner diameter after shrinkage | 15 mm | |
| Length | 75 mm | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 80 °C | |
| contains glue inside | No | |
| Wall thickness | 3.3 mm | |
| Colour | black | |
| Material | PE | |
| Shrinking temperature | 135 °C | |
| Inch Size | 1-1/2 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 39174000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
