416-13060 | HellermannTyton
Heatshrink cap, 1613-1-B8W
Unit Price (€ / pc.)
5.1170 € *
Available: 15 pcs.
Next delivery: 3 pcs. on 2026-07-27
Total Price:
5.12 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1170 €
10 pcs.
4.7005 €
100 pcs.
4.3078 €
500 pcs.
4.0698 €
1000 pcs.
3.6890 €
*incl. VAT plus shipping costs
Subject to prior sale

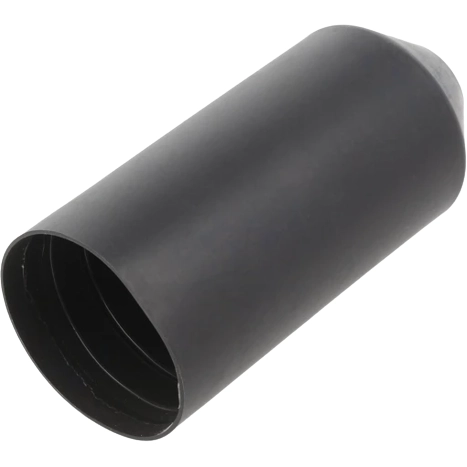

Heatshrink caps, type HellermannTyton HEK.
As end cap. Thermoplastic adhesive lining, robust; Material: polyolefin, chemically cross-linked (PEX). Color: black. Shrinking rate: to 3 : 1. Shrinking temperature: as of +135 °C. Operating temperatures: –55 to +80 °C. Dielectric strength: 15 kV/mm. Fire protection properties: compliant with ASTM D635.

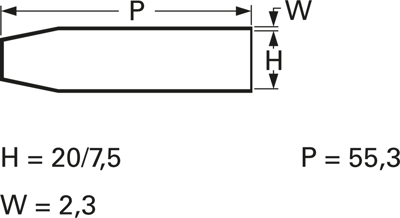

Technical attributes (type. Dimension H pre-shrinking/post-shrinking ±10 %. Dimension P post-shrinking ±10 %. Dimension W post-shrinking ±20 %): 1613-1-B8W, H 20/7.5, P 55.3, W 2.3 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shrinking rate | 3:1 | |
| Inner diameter before shrinkage | 20 mm | |
| Inner diameter after shrinkage | 7.5 mm | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 80 °C | |
| contains glue inside | No | |
| Wall thickness | 2.3 mm | |
| Colour | black | |
| Material | PE | |
| Shrinking temperature | 135 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 1 piece |
| Country of origin | CN |
| Customs tariff number | 39174000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
