157-00242 | HellermannTyton
Cable tie, PA, (L x W) 167 x 4.6 mm, bundle-Ø 1 to 35 mm, black, -40 to 105 °C, 157-00242
Order No.: 42P5703
EAN: 4031026516783
MPN:
157-00242
T50SOSFT6LG-E2-PA66HIRHS-BK
Unit Price (€ / pc.)
0.1523 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
1.52 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1523 €
100 pcs.
0.1369 €
500 pcs.
0.1297 €
1000 pcs.
0.1214 €
5000 pcs.
0.1071 €
*incl. VAT plus shipping costs
Subject to prior sale

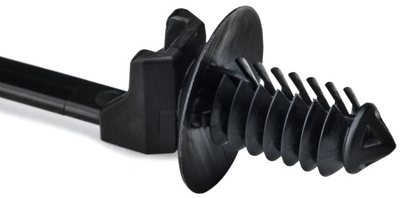

Fixing tie, 157-00242, HellermannTyton
Primarily designed for fixing cable harnesses in the automotive industry, its simplicity and ease of use has resulted in this parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
Features
- Cable tie head always situated in defined position
- Easy to assemble without the need for a tool
- Disc adjusts tie for pressure from various directions and minimises ingress of dust and dirt
- Suitable for use within threaded holes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Min holding force | 180 N | |
| Colour | black | |
| Width | 4.6 mm | |
| Thickness | 1.3 mm | |
| Product type | cable tie | |
| detachable closure | No | |
| Material | PA | |
| Halogen free | No | |
| max. operating temperature | 105 °C | |
| Length | 167 mm | |
| UV-resistant | No | |
| max. Bundle diameter | 35 mm | |
| Version | externally interlocking | |
| min. operating temperature | -40 °C | |
| min. Bundle diameter | 1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Bag with 500 pieces |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
