157-00115 | HellermannTyton
Cable tie outside serrated, polyamide, (L x W) 163 x 4.6 mm, bundle-Ø 1 to 35 mm, gray, -40 to 130 °C
Order No.: 42P5699
EAN: 4031026436067
MPN:
157-00115
T50SOSFT8E-PA46-GY
Unit Price (€ / pc.)
0.357 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

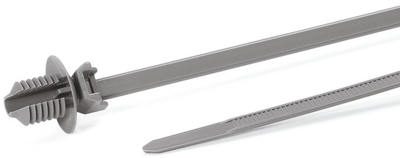

Fixing tie, 157-00115, HellermannTyton
Primarily designed for fixing cable harnesses in the automotive industry, its simplicity and ease of use has resulted in this parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
Features
- Cable tie head always situated in defined position
- Easy to assemble without the need for a tool
- Disc adjusts tie for pressure from various directions and minimises ingress of dust and dirt
- Suitable for use within threaded holes
Technical specifications
| Width | 4.6 mm | |
| Thickness | 1.3 mm | |
| Colour | gray | |
| Halogen free | No | |
| Length | 163 mm | |
| Material | polyamide | |
| max. Bundle diameter | 35 mm | |
| max. operating temperature | 130 °C | |
| min. Bundle diameter | 1 mm | |
| min. operating temperature | -40 °C | |
| UV-resistant | No | |
| detachable closure | No | |
| Min holding force | 225 N |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
| Original Packaging | Bag with 1,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
