157-00228 | HellermannTyton

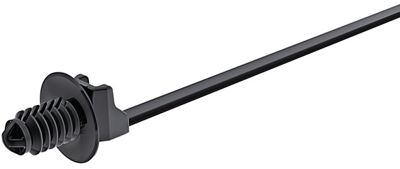

Cable tie, PA, (L x W) 165 x 4.6 mm, bundle-Ø 1 to 35 mm, black, -40 to 105 °C, 157-00228
Order No.: 42P5700
EAN: 5022660344572
MPN:
157-00228
T50SOSFT6LGE-PA66HS-BK
Unit Price (€ / pc.)
0.0976 € *
Available: 955 pcs.
Total Price:
0.98 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0976 €
100 pcs.
0.0881 €
500 pcs.
0.0833 €
1500 pcs.
0.0785 €
6000 pcs.
0.0678 €
*incl. VAT plus shipping costs
Subject to prior sale
Fixing tie, 157-00228, HellermannTyton
Primarily designed for fixing cable harnesses in the automotive industry, its simplicity and ease of use has resulted in this parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
Features
- Cable tie head always situated in defined position
- Easy to assemble without the need for a tool
- Disc adjusts tie for pressure from various directions and minimises ingress of dust and dirt
- Suitable for use within threaded holes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Colour | black | |
| detachable closure | No | |
| Thickness | 1.3 mm | |
| Length | 165 mm | |
| max. Bundle diameter | 35 mm | |
| Width | 4.6 mm | |
| UV-resistant | No | |
| Version | externally interlocking | |
| Product type | cable tie | |
| Material | PA | |
| Halogen free | Yes | |
| Min holding force | 180 N | |
| min. Bundle diameter | 1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | GB |
| Original Packaging | Bag with 1,500 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
