157-00072 | HellermannTyton
Cable tie, PA, (L x W) 163 x 4.6 mm, bundle-Ø 1 to 35 mm, black, -40 to 105 °C, 157-00072
Order No.: 42P5695
EAN: 4031026319513
MPN:
157-00072
T50SOSFT8E-PA66HS-BK
Unit Price (€ / pc.)
0.2190 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
2.19 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2190 €
100 pcs.
0.1975 €
500 pcs.
0.1856 €
1000 pcs.
0.1749 €
5000 pcs.
0.1535 €
*incl. VAT plus shipping costs
Subject to prior sale

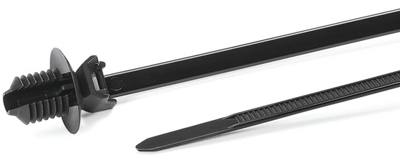

Fixing tie, 157-00072, HellermannTyton
Primarily designed for fixing cable harnesses in the automotive industry, its simplicity and ease of use has resulted in this parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
Features
- Cable tie head always situated in defined position
- Easy to assemble without the need for a tool
- Disc adjusts tie for pressure from various directions and minimises ingress of dust and dirt
- Suitable for use within threaded holes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | Yes | |
| Thickness | 1.3 mm | |
| Colour | black | |
| Product type | cable tie | |
| detachable closure | No | |
| Version | externally interlocking | |
| max. Bundle diameter | 35 mm | |
| min. Bundle diameter | 1 mm | |
| max. operating temperature | 105 °C | |
| UV-resistant | No | |
| Min holding force | 225 N | |
| Length | 163 mm | |
| min. operating temperature | -40 °C | |
| Width | 4.6 mm | |
| Material | PA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39269097 |
| Original Packaging | Bag with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
