121-83380 | HellermannTyton
Cable ties for increased requirements, polyamide, (L x W) 337 x 8 mm, bundle-Ø 8 to 86 mm, black, UV resistant, -40 to 85 °C
Unit Price (€ / pc.)
0.8449 € *
Available: 0 pcs.
Leadtime: 1 Week **

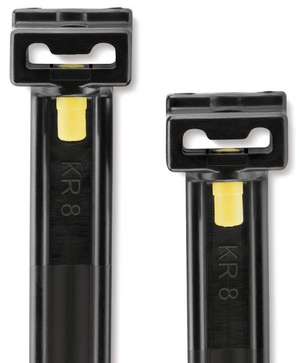

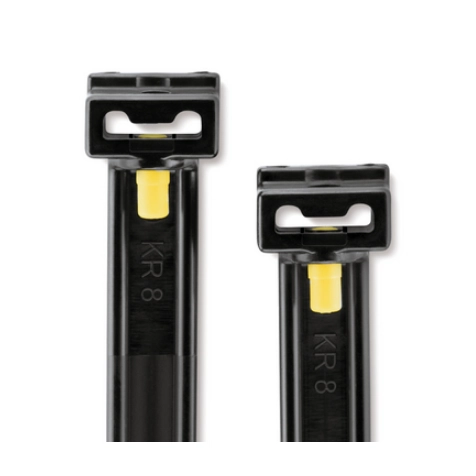

Cable tie locked by glass fibre pin, 121-83380, HellermannTyton

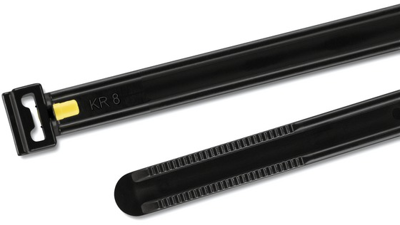

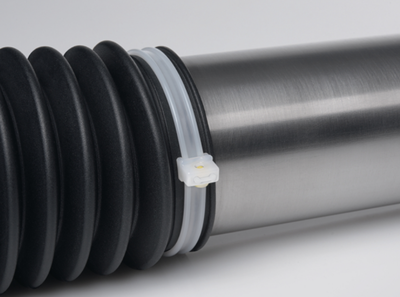

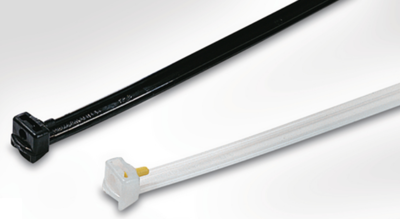

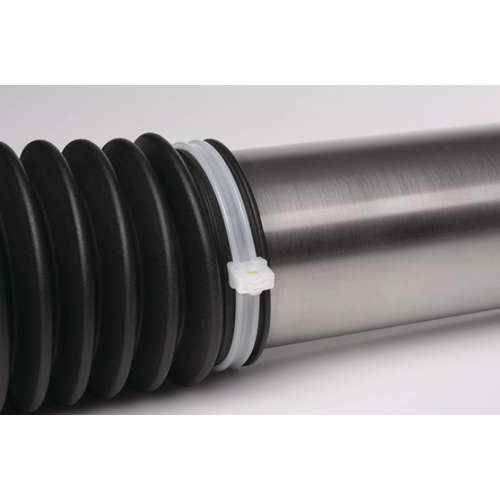

This cable tie is distinguished by its smooth strap and unique locking mechanism. The chamfered head allows for a firm fit around the bundled element. Due to its special design this cable tie can be used as a safety method to bundle any cable and to also secure bellows on steering racks, water hoses or vacuum lines. The endless strap version is fairly flexible and can be cut to any length required.
Features
- Cable tie without serration to avoid any damage to cables

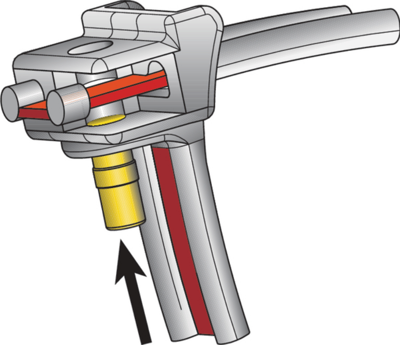

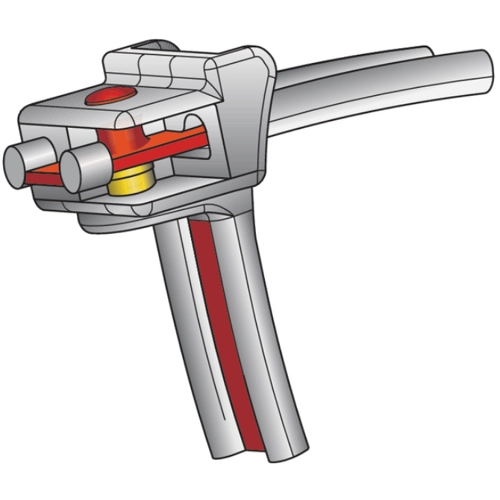

- Strap is locked into place with a glass-fibre reinforced pin
- Very secure and vibration resistant fixing
- Highly resistant to chemicals, impact and UV light
- For assembly a special KR-tool is needed
Technical specifications
| Width | 8 mm | |
| Chemicla resistant | Yes | |
| Thickness | 2.4 mm | |
| Colour | black | |
| Halogen free | Yes | |
| Length | 337 mm | |
| Material | polyamide | |
| max. Bundle diameter | 86 mm | |
| max. operating temperature | 85 °C | |
| min. Bundle diameter | 8 mm | |
| min. operating temperature | -40 °C | |
| UV-resistant | Yes | |
| detachable closure | No | |
| Min holding force | 390 N |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
| Original Packaging | Bag with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
