118-00018 | HellermannTyton
Cable tie, PA, (L x W) 245 x 4.6 mm, bundle-Ø 1.6 to 66 mm, black, -40 to 105 °C, 118-00018
Unit Price (€ / pc.)
0.1999 € *
Available: 300 pcs.
Total Price:
2.00 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1999 €
50 pcs.
0.1749 €
100 pcs.
0.1595 €
500 pcs.
0.1476 €
1000 pcs.
0.1321 €
*incl. VAT plus shipping costs
Subject to prior sale

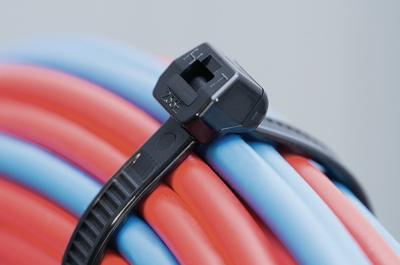

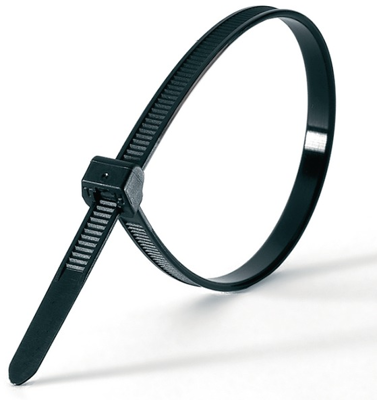

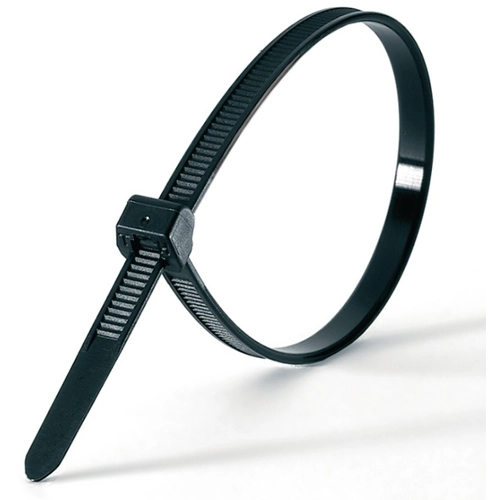

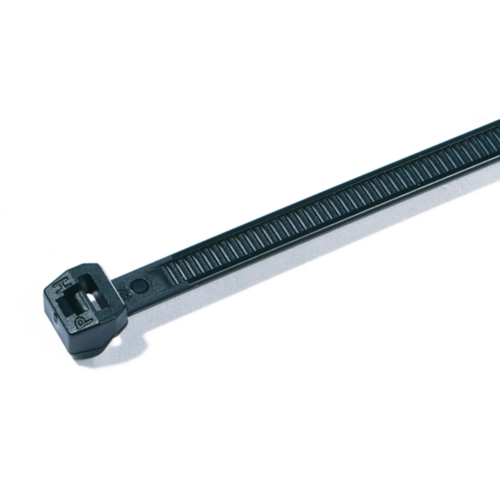

Cable tie outside serrated, 118-00018, HellermannTyton
This cable tie is used in many areas where thin-walled or soft insulation wires and cable are being installed, for instance automotive and aircraft industry.
Features
- Outside serrated cable tie with smooth surface to the bundle
- Tie follows the contours of the cable bundle perfectly

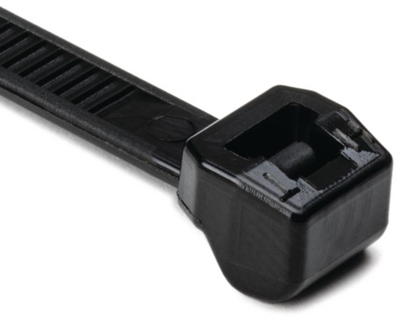

- Takes up less space due to curved head design
- Easy insertion combined with high tensile strength
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable tie | |
| Version | externally interlocking | |
| Length | 245 mm | |
| Width | 4.6 mm | |
| Thickness | 1.3 mm | |
| min. Bundle diameter | 1.6 mm | |
| max. Bundle diameter | 66 mm | |
| Min holding force | 225 N | |
| Material | PA | |
| Colour | black | |
| detachable closure | No | |
| Chemical resistant | No | |
| UV-resistant | No | |
| Halogen free | Yes | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 39269097 |
| Original Packaging | Bag with 100 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
