113-12020 | HellermannTyton
Cable tie, polyamide, (L x W) 395 x 7.6 mm, bundle-Ø 5 to 102 mm, black, -40 to 85 °C
Order No.: 13H1237
EAN: 4031026108278
MPN:
113-12020
T120MR-PA66-BK
Unit Price (€ / pc.)
1.6184 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
1.62 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6184 €
10 pcs.
1.4161 €
100 pcs.
1.2971 €
500 pcs.
1.2019 €
1000 pcs.
1.0948 €
*incl. VAT plus shipping costs
**Subject to prior sale

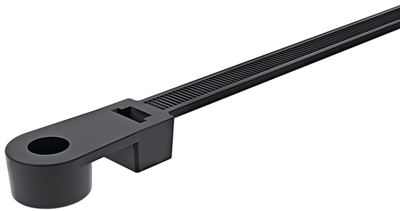

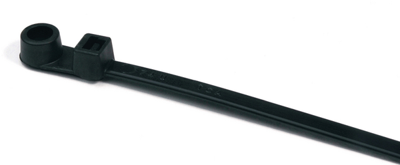

Cable tie, 113-12020, HellermannTyton
Cable tie with a built-in mounting hole and once fastend around the cables, the bundle can be simply secured to the panel with a screw or bolt.
Features
- One-piece bundling and fixing tie
- Quick and easy installation
Technical specifications
| Width | 7.6 mm | |
| Chemicla resistant | No | |
| Thickness | 1.8 mm | |
| Colour | black | |
| Halogen free | No | |
| Length | 395 mm | |
| Material | polyamide | |
| max. Bundle diameter | 102 mm | |
| max. operating temperature | 85 °C | |
| min. Bundle diameter | 5 mm | |
| min. operating temperature | -40 °C | |
| UV-resistant | No | |
| detachable closure | No | |
| Min holding force | 333.6 N |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 39269097 |
| Original Packaging | Bag with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
