166-50609 | HellermannTyton

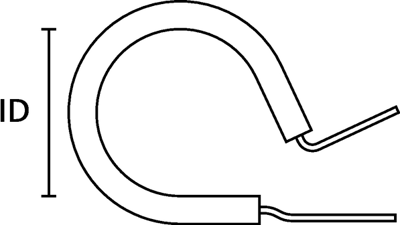

Clamp, with PVC protective profile, (W) 25.4 mm, head Ø 76.2 mm, mounting Ø 14.2 mm, clamping range 75-76.2 mm, steel, silver/black, for metal hoses, 166-50609
Unit Price (€ / pc.)
15.1368 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
15.14 € *
Price list
Quantity
Price per unit*
1 pcs.
15.1368 €
10 pcs.
14.0063 €
50 pcs.
12.8639 €
100 pcs.
12.1142 €
500 pcs.
10.9718 €
*incl. VAT plus shipping costs
Subject to prior sale
Clamp, 166-50609, HellermannTyton
The AFCS Fixing clip is used to secure metallic conduits.
Features
- Simple, secure fixing of metallic conduits
- Liner prevents damage due to abrasion
Technical specifications
| Filter | Property | Value |
|---|---|---|
| clamping force range | 75-76.2 mm | |
| max. operating temperature | 102 °C | |
| min. operating temperature | -20 °C | |
| Colour | silver/black | |
| Material | steel | |
| Head Diameter | 76.2 mm | |
| Width | 25.4 mm | |
| Mounting hole size | 14.2 mm | |
| Suitable for | metal hoses | |
| Product type | mounting clamp | |
| Version | with PVC protective profile |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 73269098 |
| Original Packaging | Bag with 1 piece |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
