151-10915 | HellermannTyton

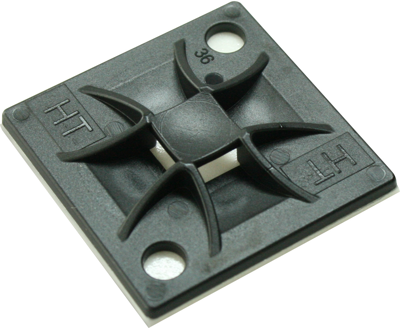

Mounting base, nylon, black, self-adhesive, (L x W x H) 30 x 30 x 4.5 mm

Order No.: 12H5040
EAN: 4031026413785
MPN:
151-10915
QM30A-PA66-BK
Series: QMA-Mount
HellermannTyton
default L
front L
Image may differ
Unit Price (€ / pc.)
0.9996 € *
Available: 112 pcs.
Leadtime: 1 Week **
Total Price:
1.00 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9996 €
10 pcs.
0.9044 €
100 pcs.
0.8330 €
1000 pcs.
0.7735 €
5000 pcs.
0.7259 €
*incl. VAT plus shipping costs
**Subject to prior sale

Mounting sockets, type HellermannTyton QM.

Self-adhesive and screw mounting, halogen-free. cable ties of the Q series can be looped in from all four sides and always remain at their position during installation ( in a vertical position); Material: polyamide 6.6. Operating temperatures: –40 to +85 °C. Fire protection properties to UL 94 V-2 (without adhesive).

Self-adhesive and screw mount.

Carrier material: PE foam. Operating temperatures: –40 to +60 °C.

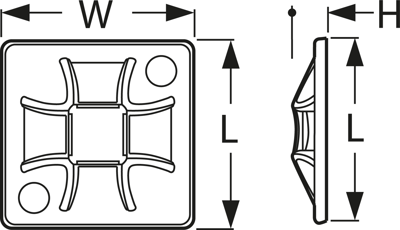

Technical attributes (type, dimensions, tie width TW, color): 151-10915, L 30, W 30, H 4.5 mm, TW 5.1 mm, black

Technical specifications
Version mounting base
Width 30 mm
Colour black
Height 4.5 mm
Length 30 mm
Material nylon
Self-adhesive Yes
Logistics
Country of origin DE
Customs tariff number 39269097
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
