151-02245 | HellermannTyton
Mounting base, max. bundle Ø 4 mm, polyamide, black, self-adhesive, (L x W x H) 28 x 28 x 4.7 mm
Unit Price (€ / pc.)
1.6065 € *
Available: 228 pcs.
Leadtime: 1 Week **
Total Price:
1.61 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6065 €
10 pcs.
1.5232 €
100 pcs.
1.4399 €
500 pcs.
1.3566 €
1000 pcs.
1.2733 €
*incl. VAT plus shipping costs
**Subject to prior sale

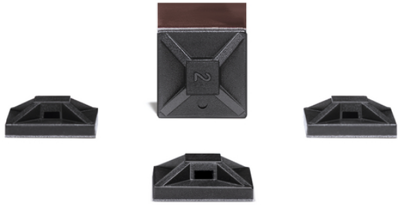

Mounting base, 151-02245, HellermannTyton
MB mounting base has a square design and is fairly common in areas like electrical cabinet, railway, aerospace, automotive and agriculture machinery. The premium self-adhesive bonds well on high and low-energy surfaces like plastics, metal, varnish or paint and is suitable for a wide range of applications.
Features
- MB mounts with homogeneous system of acrylic adhesive
- Very good initial adhesion, increases with time
- Protection foil with finger lift for easy peel off
Technical specifications
| Version | mounting base | |
| Width | 28 mm | |
| Colour | black | |
| Height | 4.7 mm | |
| Length | 28 mm | |
| Material | polyamide | |
| max. Bundle diameter | 4 mm | |
| Self-adhesive | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
| Original Packaging | Bag with 100 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
