151-00757 | HellermannTyton
Mounting base, for screw fastening, PEEK, beige, (L x W x H) 20.5 x 10.2 x 5.5 mm, 151-00757
Unit Price (€ / pc.)
4.0579 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
4.06 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0579 €
50 pcs.
3.7247 €
100 pcs.
3.5105 €
500 pcs.
3.2963 €
1000 pcs.
3.0702 €
*incl. VAT plus shipping costs
Subject to prior sale

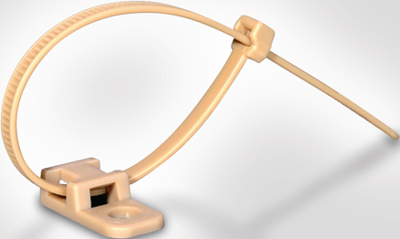

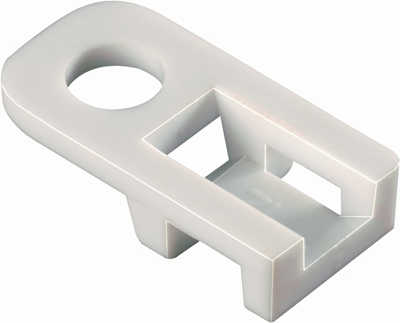

Cable tie mount, 151-00757, HellermannTyton
The CTAM offers particular benefit due to its small size and can be used even in compact space. CTAM mount manufactured from PEEK material offers even more benefit. It has been specially designed for the use in hazardous environment. Its suitability for high temperature application makes it useful for the drilling industry, railway, offshore or automotive industry. The excellent chemical and radium ray resistance is predestined for application in medical engineering, chemical industry and power station. Because of this combination of different property PEEK mount can replace metal solution.
Features
- Suitable for applications with minimal space
- Mounted before cable installation and in line with cable
- CTAM has 4-way entry design for use in line or at 90° angle to cable run
- For high temperature application from -55° C up to +240° C
- High chemical resistance
- Radiation resistance
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | for screw fastening | |
| Height | 5.5 mm | |
| Width | 10.2 mm | |
| Material | PEEK | |
| Product type | mounting base | |
| Colour | beige | |
| Length | 20.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 39269097 |
| Original Packaging | Bag with 100 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
