170-14000 | HellermannTyton

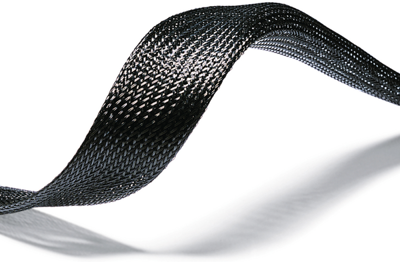

Plastic braided sleeve, inner Ø 40 mm, range 30-50 mm, black, halogen free, -50 to 150 °C
Unit Price (€ / mtr.)
9.8889 € *
Available: 41 mtr.
Leadtime: 1 Week **
Total Price:
9.89 € *
Price list
Quantity
Price per unit*
1 mtr.
9.8889 €
10 mtr.
8.6989 €
50 mtr.
8.1158 €
200 mtr.
7.6279 €
400 mtr.
7.3423 €
*incl. VAT plus shipping costs
**Subject to prior sale
Plastic braid sleeving, type HellermannTyton HEGP.
Woven based on the shear principle, that is, the tubing diameter extends when the layers are pushed together and is reduced again by stretching the tubing; Material: Polyester (PET), halogen-free. Color: black, combustibility to UL 94 VDC2, melting point: +250 °C, coverage: approx. 81%. Operating temperatures: –50 to +150 °C, briefly to +220 °C.
Technical attributes (type, range of application (AR)): HEGP40, AR 30 to 50 mm
Technical specifications
| Version | plastic braided sleeve | |
| Application range | 30-50 mm | |
| Colour | black | |
| Halogen free | Yes | |
| Inner diameter | 40 mm | |
| Material | polyester | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -50 °C | |
| Optical Coverage | 81 % |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 58081000 |
| Original Packaging | Reel with 50 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
