170-12000 | HellermannTyton
Plastic braided sleeve, inner Ø 20 mm, range 14-26 mm, black, halogen free, -50 to 150 °C, 170-12000
Unit Price (€ / mtr.)
4.7600 € *
Available: 0 mtr.
Next delivery: 163 mtr. on 2025-05-12
Leadtime: 1 Week **
Total Price:
4.76 € *
Price list
Quantity
Price per unit*
1 mtr.
4.7600 €
10 mtr.
4.1769 €
100 mtr.
3.6771 €
200 mtr.
3.5343 €
1000 mtr.
3.2487 €
*incl. VAT plus shipping costs
**Subject to prior sale

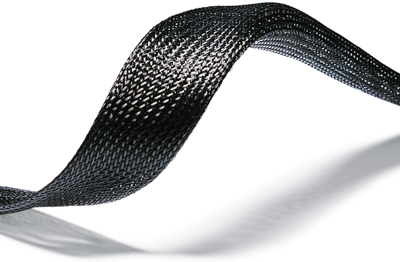

Plastic braid sleeving, type HellermannTyton HEGP.
Woven based on the shear principle, that is, the tubing diameter extends when the layers are pushed together and is reduced again by stretching the tubing; Material: Polyester (PET), halogen-free. Color: black, combustibility to UL 94 VDC2, melting point: +250 °C, coverage: approx. 81%. Operating temperatures: –50 to +150 °C, briefly to +220 °C.
Technical attributes (type, range of application (AR)): HEGP20, AR 14 to 26 mm
Technical specifications
| Version | Kunststoff-Geflechtschlauch | |
| Inner diameter | 20 mm | |
| Application range | 14-26 mm | |
| Colour | schwarz | |
| Material | Polyester | |
| Halogen free | Yes | |
| Optical Coverage | 81 % | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 58081000 |
| Original Packaging | Rolle mit 50 Meter |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
