422-20400 | HellermannTyton
Shrink fit reduction, 3:1, straight, S1 (38.8/31.4 mm), S2 (28.2/10.9 mm), 422-20400
Order No.: 42P5870
EAN: 5022660454400
MPN:
422-20400
313F364-9-PO-X-BK
Series: Helashrink Serie 313F
Unit Price (€ / pc.)
26.9892 € *
Available: 0 pcs.
Leadtime: On Request **

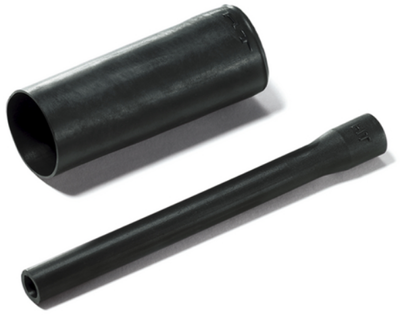

Shrink fit reduction, 422-20400, HellermannTyton
The 422-20400 is a lightweight strain relief for small cable diameters requiring high shrink ratio.
Technical specifications
| Number of outputs | 1 | |
| Version | gerade | |
| Colour | schwarz | |
| Inner diameter after shrinkage 2 | 10.9 mm | |
| Inner diameter side 1 (after shrinkage) | 31.4 mm | |
| Inner diameter side 1 (before shrinkage) | 38.8 mm | |
| Inner diameter before shrinkage 2 | 28.2 mm | |
| contains glue inside | No | |
| Length | 177.8 mm | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -55 °C | |
| Shrinking rate | 3:1 | |
| Wall thickness | 1.7 mm |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 39174000 |
| Original Packaging | Beutel mit 5 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
