422-20000 | HellermannTyton

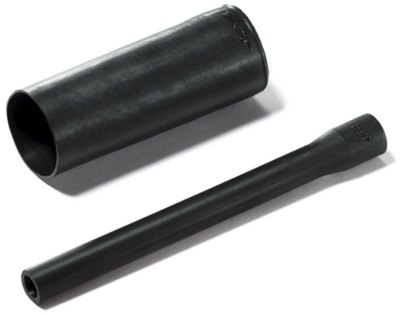

Shrink fit reduction, 3:1, straight, S1 (23.8/17.2 mm), S2 (9.9/6.6 mm), 422-20000
Order No.: 42P5866
EAN: 5022660453854
MPN:
422-20000
313F322-9-PO-X-BK
Series: Helashrink Serie 313F
Unit Price (€ / pc.)
15.6247 € *
Available: 0 pcs.
Leadtime: 13 Weeks **
Shrink fit reduction, 422-20000, HellermannTyton
The 422-20000 is a lightweight strain relief for small cable diameters requiring high shrink ratio.
Technical specifications
| Number of outputs | 1 | |
| Version | gerade | |
| Colour | schwarz | |
| Inner diameter after shrinkage 2 | 6.6 mm | |
| Inner diameter side 1 (after shrinkage) | 17.2 mm | |
| Inner diameter side 1 (before shrinkage) | 23.8 mm | |
| Inner diameter before shrinkage 2 | 9.9 mm | |
| contains glue inside | No | |
| Length | 105.9 mm | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -55 °C | |
| Shrinking rate | 3:1 | |
| Wall thickness | 1.5 mm |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 39174000 |
| Original Packaging | Beutel mit 5 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
