21038211511 | Harting
Plug, M12, 5 pole, crimp connection, screw locking, straight, 21038211511
Order No.: 42P3905
EAN: 5713140225381
MPN:
21038211511
21 03 821 1511
Series: Circular connectors M12
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
27.0487 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
27.05 € *
Price list
Quantity
Price per unit*
1 pcs.
27.0487 €
10 pcs.
25.3589 €
25 pcs.
23.8714 €
50 pcs.
22.5386 €
*incl. VAT plus shipping costs
Subject to prior sale

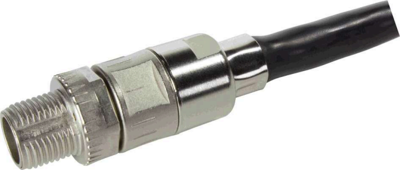

Cable connector, 21038211511, Harting
Cable connector, straight, male, A-coding, crimp termination, screw locking, Conductor cross-section: 0.13-0.82 mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | plug | |
| Pin number | 5 pole | |
| Thread size | M12 | |
| Coding | A | |
| Type of locking | screw locking | |
| Orientation | straight | |
| Contact connection | crimp connection | |
| Additional parts | unequipped | |
| Degree of protection (IP) | IP65/IP67 |
Download
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
