14010913102000 | Harting

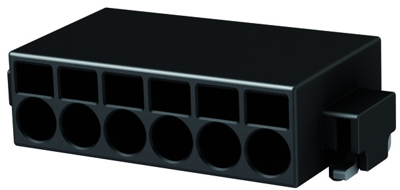

Connector, 9 pole, pitch 2.54 mm, angled, black, 14010913102000
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
2.5228 € *
Standard delivery time from the manufacturer is: 8 Weeks
PCB terminal block, 14010913102000, HARTING
PCB terminal block, Horizontal, Push-in-spring-cage termination, Reflow soldering termination (SMT), Rated current: 6 A, Contacts: 9 Copper alloy, Sn over Ni Mating side, Sn over Ni Termination side Liquid crystal polymer (LCP), Black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 9 pole | |
| Grid | 2.54 mm | |
| Connection | spring-clamp connection | |
| Orientation | angled | |
| contact surface | silver-plated | |
| Connection plating | silver-plated | |
| Rated voltage | 160 V | |
| Rated current | 6 A | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Original Packaging | Reel with 500 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Electrical equipment take-back |  |
