09185647923 | Harting

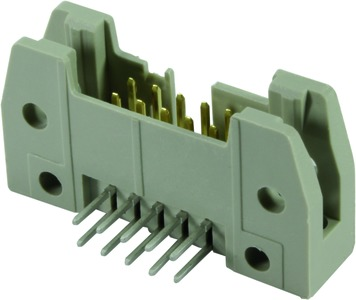

Pin header, 64 pole, pitch 2.54 mm, angled, gray, 09185647923
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
4.8076 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
4.81 € *
Price list
Quantity
Price per unit*
1 pcs.
4.8076 €
10 pcs.
4.4387 €
50 pcs.
4.1293 €
100 pcs.
3.8437 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin header, 09185647923, HARTING
Male connector, Wave soldering termination, Rated current: 1 A, Contacts: 64AngledCopper alloy,Noble metal over Ni Mating side, Sn over Ni Termination sidePerformance level: 3, acc. to IEC 60603-13, Thermoplastic resin (PBT),Grey
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 64 pole | |
| Grid | 2.54 mm | |
| Connection | PCB connection | |
| Orientation | angled | |
| contact surface | gold-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 500 V | |
| Rated current | 1 A | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Electrical equipment take-back |  |
