09185646324 | Harting

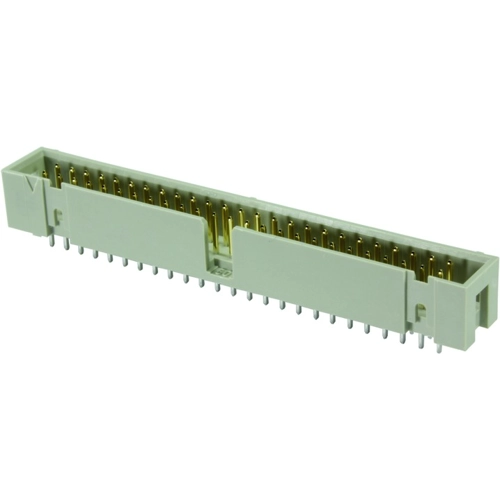

Pin header, 64 pole, pitch 2.54 mm, straight, gray, 09185646324

Order No.: 53F4250
EAN: 4099889999099
MPN:
09185646324
09 18 564 6324
Series: SEK
09185646324 Harting PCB Connection Systems Image 1
09185646324 Harting PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
3.7842 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
3.78 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.7842 €

Low profile pin headers, straight, type 0918.

Dimension E: (number of poles/2 - 1) x 2.54 mm. Dimension B: E + 7.7 mm.

Technical attributes (type, number of poles, dimension A): 5646324, 64-pole, A 89.1 mm

Technical specifications
Filter Property Value
Connection plating tin-plated
Additional parts equipped
Orientation straight
Pin number 64 pole
contact surface gold-plated
Rated voltage 500 V
Connection PCB connection
Colour gray
Number of rows 2
Grid 2.54 mm
Rated current 1 A
Contact type pin
Version pin header
Logistics
Property Value
Customs tariff number 85366990
Country of origin CH
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
